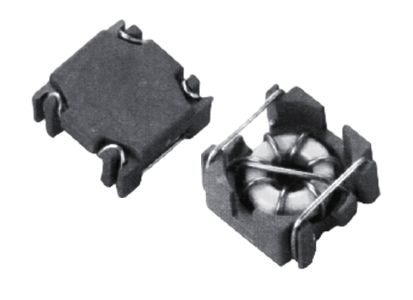

SMD differential mode inductor
Series | Inductance | DCR | Load current | Spec. | Sample Application |
FASNR3010 | 1.00-56.00uH | 0.0850-3.0160Ω | 210-1400mA | - | |
FASNR3010-1R0N1R4 | 1.00uH | 0.0850Ω | 1400mA | ||
FASNR3010-1R2N1R25 | 1.20uH | 0.0950Ω | 1250mA | ||
FASNR3010-1R5N1R5 | 1.50uH | 0.1040Ω | 1270mA | ||
FASNR3010-2R2N1R15 | 2.20uH | 0.1430Ω | 1150mA | ||
FASNR3010-2R7N1R0 | 2.70uH | 0.1690Ω | 1000mA | ||
FASNR3010-3R3N0R97 | 3.30uH | 0.1890Ω | 970mA | ||
FASNR3010-3R6N0R95 | 3.60uH | 0.2150Ω | 950mA | ||
FASNR3010-4R7N0R75 | 4.70uH | 0.2930Ω | 750mA | ||
FASNR3010-5R6N0R58 | 5.60uH | 0.3220Ω | 580mA | ||
FASNR3010-6R8N0R55 | 6.80uH | 0.3970Ω | 550mA | ||
FASNR3010-8R2N0R55 | 8.20uH | 0.5200Ω | 550mA | ||
FASNR3010-100M0R55 | 10.00uH | 0.5200Ω | 550mA | ||
FASNR3010-120M0R43 | 12.00uH | 0.6570Ω | 430mA | ||
FASNR3010-150M0R42 | 15.00uH | 0.7930Ω | 420mA | ||
FASNR3010-220M0R35 | 22.00uH | 1.2090Ω | 350mA | ||
FASNR3010-270M0R3 | 27.00uH | 1.4040Ω | 300mA | ||
FASNR3010-330M0R29 | 33.00uH | 2.0150Ω | 290mA | ||
FASNR3010-390M0R28 | 39.00uH | 2.2750Ω | 280mA | ||
FASNR3010-430M0R23 | 43.00uH | 2.3400Ω | 230mA | ||
FASNR3010-470M0R22 | 47.00uH | 2.5350Ω | 220mA | ||
FASNR3010-510M0R21 | 51.00uH | 2.8600Ω | 210mA | ||
FASNR3010-560M0R21 | 56.00uH | 3.0160Ω | 210mA | ||
FASNR3012 | 0.22-100uH | 0.0300-3.71801Ω | 170-5300mA | - | |
FASNR3012-1R0N1R87 | 1.00uH | 0.0600Ω | 1870mA | ||
FASNR3012-1R2N1R8 | 1.20uH | 0.0720Ω | 1800mA | ||
FASNR3012-1R5N1R62 | 1.50uH | 0.0750Ω | 1620mA | ||
FASNR3012-1R8N1R3 | 1.80uH | 0.0980Ω | 1300mA | ||
FASNR3012-2R2N1R2 | 2.20uH | 0.1050Ω | 1200mA | ||
FASNR3012-2R4N1R15 | 2.40uH | 0.1100Ω | 1150mA | ||
FASNR3012-2R7N1R14 | 2.70uH | 0.1100Ω | 1140mA | ||
FASNR3012-3R3N1R05 | 3.30uH | 0.1400Ω | 1050mA | ||
FASNR3012-3R6N1R05 | 3.60uH | 0.1560Ω | 1050mA | ||
FASNR3012-3R9N1R0 | 3.90uH | 0.1560Ω | 1000mA | ||
FASNR3012-4R7N0R9 | 4.70uH | 0.1560Ω | 900mA | ||
FASNR3012-5R6N0R8 | 5.60uH | 0.2260Ω | 800mA | ||
FASNR3012-6R8N0R75 | 6.80uH | 0.2470Ω | 750mA | ||
FASNR3012-100M0R6 | 10.00uH | 0.3450Ω | 600mA | ||
FASNR3012-101M0R21 | 100.00uH | 3.7180Ω | 210mA | ||
FASNR3012-120M0R48 | 12.00uH | 0.4800Ω | 480mA | ||
FASNR3012-150M0R45 | 15.00uH | 0.4950Ω | 450mA | ||
FASNR3012-180M0R43 | 18.00uH | 0.7090Ω | 430mA | ||
FASNR3012-220M0R42 | 22.00uH | 0.8390Ω | 420mA | ||
FASNR3012-270M0R35 | 27.00uH | 1.1310Ω | 350mA | ||
FASNR3012-330M0R36 | 33.00uH | 1.1380Ω | 360mA | ||
FASNR3012-360M0R34 | 36.00uH | 1.2350Ω | 340mA | ||
FASNR3012-390M0R3 | 39.00uH | 1.7290Ω | 300mA | ||
FASNR3012-470M0R27 | 47.00uH | 1.8850Ω | 270mA | ||
FASNR3012-560M0R26 | 56.00uH | 1.9500Ω | 260mA | ||
FASNR3012-680M0R24 | 68.00uH | 2.1710Ω | 240mA | ||
FASNR3012-820M0R17 | 82.00uH | 3.3020Ω | 170mA | ||
FASNR3012-R22N5R3 | 0.22uH | 0.0300Ω | 5300mA | ||
FASNR3012-R82N2R05 | 0.82uH | 0.0500Ω | 2050mA | ||
FASNR4018 | 0.47-220.00uH | 0.0180-5.2000Ω | 270-4900mA | - | |
FASNR4018-1R0N4R8 | 1.00uH | 0.0330Ω | 4800mA | ||
FASNR4018-1R5N3R3 | 1.50uH | 0.0460Ω | 3300mA | ||
FASNR4018-1R5N3R35 | 1.50uH | 0.0390Ω | 3350mA | ||
FASNR4018-1R8N3R0 | 1.80uH | 0.0440Ω | 3000mA | ||
FASNR4018-2R2N2R7 | 2.20uH | 0.0590Ω | 2700mA | ||
FASNR4018-3R3N2R45 | 3.30uH | 0.0910Ω | 2450mA | ||
FASNR4018-4R7N1R7 | 4.70uH | 0.1170Ω | 1700mA | ||
FASNR4018-6R8N1R45 | 6.80uH | 0.1430Ω | 1450mA | ||
FASNR4018-100M1R3 | 10.00uH | 0.2340Ω | 1300mA | ||
FASNR4018-101M0R4 | 100.00uH | 2.2750Ω | 400mA | ||
FASNR4018-150M0R94 | 15.00uH | 0.3250Ω | 940mA | ||
FASNR4018-151M0R31 | 150.00uH | 3.2500Ω | 310mA | ||
FASNR4018-220M0R8 | 22.00uH | 0.4680Ω | 800mA | ||
FASNR4018-221M0R27 | 220.00uH | 5.2000Ω | 270mA | ||
FASNR4018-270M0R47 | 27.00uH | 0.6110Ω | 470mA | ||
FASNR4018-330M0R56 | 33.00uH | 0.6890Ω | 560mA | ||
FASNR4018-470M0R57 | 47.00uH | 0.8450Ω | 570mA | ||
FASNR4018-680M0R47 | 68.00uH | 1.3000Ω | 470mA | ||
FASNR4018-R47N4R3 | 0.47uH | 0.0180Ω | 4300mA | ||
FASNR4018-R68N4R9 | 0.68uH | 0.0260Ω | 4900mA | ||
FASNR4020 | 0.24-43.00uH | 0.0140-0.8580Ω | 770-10500mA | - | |
FASNR4020-1R0N4R78 | 1.00uH | 0.0380Ω | 4780mA | ||
FASNR4020-1R2N5R1 | 1.20uH | 0.0380Ω | 5100mA | ||
FASNR4020-1R5N4R45 | 1.50uH | 0.0460Ω | 4450mA | ||
FASNR4020-2R2N3R4 | 2.20uH | 0.0520Ω | 3400mA | ||
FASNR4020-3R3N3R2 | 3.30uH | 0.0910Ω | 3200mA | ||
FASNR4020-3R6N2R8 | 3.60uH | 0.0720Ω | 2800mA | ||
FASNR4020-4R7N | 4.70uH | 0.0980Ω | 2350mA | ||
FASNR4020-5R1N2R3 | 5.10uH | 0.1110Ω | 2300mA | ||
FASNR4020-5R6N2R2 | 5.60uH | 0.1170Ω | 2200mA | ||
FASNR4020-6R2N2R15 | 6.20uH | 0.1500Ω | 2150mA | ||
FASNR4020-6R8N2R2 | 6.80uH | 0.1630Ω | 2200mA | ||
FASNR4020-7R5N1R85 | 7.50uH | 0.1500Ω | 1850mA | ||
FASNR4020-8R2N1R75 | 8.20uH | 0.1630Ω | 1750mA | ||
FASNR4020-100M1R6 | 10.00uH | 0.2150Ω | 1600mA | ||
FASNR4020-120M1R5 | 12.00uH | 0.2280Ω | 1500mA | ||
FASNR4020-150M1R35 | 15.00uH | 0.2990Ω | 1350mA | ||
FASNR4020-220M1R05 | 22.00uH | 0.4550Ω | 1050mA | ||
FASNR4020-270M1R02 | 27.00uH | 0.7090Ω | 1020mA | ||
FASNR4020-330M0R85 | 33.00uH | 0.7150Ω | 850mA | ||
FASNR4020-390M0R82 | 39.00uH | 0.8450Ω | 820mA | ||
FASNR4020-430M0R77 | 43.00uH | 0.8580Ω | 770mA | ||
FASNR4020-R24N10R5 | 0.24uH | 0.0140Ω | 10500mA | ||
FASNR4020-R33N7R5 | 0.33uH | 0.0160Ω | 7500mA | ||
FASNR4020-R47N7R0 | 0.47uH | 0.0290Ω | 7000mA | ||
FASNR4020-R68N6R4 | 0.68uH | 0.0360Ω | 6400mA | ||
FASNR4026 | 1.0-33uH | 0.031-0.3510Ω | 550-3300mA | - | |
FASNR4026-1R0N3R3 | 1.00uH | 0.0310Ω | 3300mA | ||
FASNR4026-1R2N3R1 | 1.20uH | 0.0390Ω | 3100mA | ||
FASNR4026-1R5N2R4 | 1.50uH | 0.0390Ω | 2400mA | ||
FASNR4026-2R2N2R1 | 2.20uH | 0.0520Ω | 2100mA | ||
FASNR4026-3R3N1R8 | 3.30uH | 0.0650Ω | 1800mA | ||
FASNR4026-4R7N1R45 | 4.70uH | 0.0720Ω | 1450mA | ||
FASNR4026-6R8N1R3 | 6.80uH | 0.0850Ω | 1300mA | ||
FASNR4026-100M1R0 | 10.00uH | 0.1100Ω | 1000mA | ||
FASNR4026-150M0R9 | 15.00uH | 0.1430Ω | 900mA | ||
FASNR4026-220M0R6 | 22.00uH | 0.2140Ω | 600mA | ||
FASNR4026-330M0R55 | 33.00uH | 0.3510Ω | 550mA | ||
FASNR4030 | 0.68-47uH | 0.013-0.579Ω | 950-6800mA | - | |
FASNR4030-1R0N5R26 | 1.00uH | 0.0180Ω | 5260mA | ||
FASNR4030-1R2N5R8 | 1.20uH | 0.0200Ω | 5800mA | ||
FASNR4030-1R5N4R84 | 1.50uH | 0.0260Ω | 4840mA | ||
FASNR4030-1R8N5R4 | 1.80uH | 0.0330Ω | 5400mA | ||
FASNR4030-2R2N4R9 | 2.20uH | 0.0390Ω | 4900mA | ||
FASNR4030-3R3N3R3 | 3.30uH | 0.0520Ω | 3300mA | ||
FASNR4030-3R6N3R0 | 3.60uH | 0.0520Ω | 3000mA | ||
FASNR4030-3R9N3R0 | 3.90uH | 0.0740Ω | 3000mA | ||
FASNR4030-4R3N2R95 | 4.30uH | 0.0720Ω | 2950mA | ||
FASNR4030-4R7N2R9 | 4.70uH | 0.0780Ω | 2900mA | ||
FASNR4030-5R6N2R6 | 5.60uH | 0.0850Ω | 2600mA | ||
FASNR4030-6R8N2R75 | 6.80uH | 0.1170Ω | 2750mA | ||
FASNR4030-7R5N2R2 | 7.50uH | 0.1100Ω | 2200mA | ||
FASNR4030-8R2N2R1 | 8.20uH | 0.1170Ω | 2100mA | ||
FASNR4030-100M1R95 | 10.00uH | 0.1300Ω | 1950mA | ||
FASNR4030-120M1R7 | 12.00uH | 0.1750Ω | 1700mA | ||
FASNR4030-150M1R65 | 15.00uH | 0.2470Ω | 1650mA | ||
FASNR4030-180M1R4 | 18.00uH | 0.2600Ω | 1400mA | ||
FASNR4030-220M1R3 | 22.00uH | 0.2920Ω | 1300mA | ||
FASNR4030-270M1R15 | 27.00uH | 0.3380Ω | 1150mA | ||
FASNR4030-330M1R1 | 33.00uH | 0.4290Ω | 1100mA | ||
FASNR4030-360M1R05 | 36.00uH | 0.4360Ω | 1050mA | ||
FASNR4030-390M1R03 | 39.00uH | 0.5660Ω | 1030mA | ||
FASNR4030-470M0R95 | 47.00uH | 0.5790Ω | 950mA | ||
FASNR4030-R68N6R8 | 0.68uH | 0.0130Ω | 6800mA | ||
FASNR4030-R91N6R25 | 0.91uH | 0.0170Ω | 6250mA | ||
FASNR5020 | 0.22-200uH | 0.0110-2.6000Ω | 300-9000mA | - | |
FASNR5020-1R0N4R1 | 1.00uH | 0.0260Ω | 4100mA | ||
FASNR5020-1R2N4R5 | 1.20uH | 0.0290Ω | 4500mA | ||
FASNR5020-1R5N4R1 | 1.50uH | 0.0340Ω | 4100mA | ||
FASNR5020-2R2N3R2 | 2.20uH | 0.0420Ω | 3200mA | ||
FASNR5020-2R7N2R9 | 2.70uH | 0.0490Ω | 2900mA | ||
FASNR5020-3R0N2R55 | 3.00uH | 0.0490Ω | 2550mA | ||
FASNR5020-3R3N2R55 | 3.30uH | 0.0560Ω | 2550mA | ||
FASNR5020-3R6N2R8 | 3.60uH | 0.0560Ω | 2800mA | ||
FASNR5020-3R9N2R3 | 3.90uH | 0.0560Ω | 2300mA | ||
FASNR5020-4R3N2R5 | 4.30uH | 0.0740Ω | 2500mA | ||
FASNR5020-4R7N2R5 | 4.70uH | 0.0740Ω | 2500mA | ||
FASNR5020-5R1N2R25 | 5.10uH | 0.0830Ω | 2250mA | ||
FASNR5020-5R6N2R3 | 5.60uH | 0.0830Ω | 2300mA | ||
FASNR5020-6R8N2R05 | 6.80uH | 0.1080Ω | 2050mA | ||
FASNR5020-7R5N1R85 | 7.50uH | 0.1170Ω | 1850mA | ||
FASNR5020-8R2N1R85 | 8.20uH | 0.1270Ω | 1850mA | ||
FASNR5020-9R1M1R7 | 9.10uH | 0.1430Ω | 1700mA | ||
FASNR5020-100M1R7 | 10.00uH | 0.1430Ω | 1700mA | ||
FASNR5020-101M0R53 | 100.00uH | 1.4300Ω | 530mA | ||
FASNR5020-120M1R5 | 12.00uH | 0.1820Ω | 1500mA | ||
FASNR5020-121M0R42 | 120.00uH | 1.7550Ω | 420mA | ||
FASNR5020-150M1R35 | 15.00uH | 0.2150Ω | 1350mA | ||
FASNR5020-180M1R25 | 18.00uH | 0.2600Ω | 1250mA | ||
FASNR5020-201M0R3 | 200.00uH | 2.6000Ω | 300mA | ||
FASNR5020-220M1R5 | 22.00uH | 0.3900Ω | 1500mA | ||
FASNR5020-330M0R92 | 33.00uH | 0.5070Ω | 920mA | ||
FASNR5020-470M0R77 | 47.00uH | 0.6800Ω | 770mA | ||
FASNR5020-560M0R77 | 56.00uH | 0.8190Ω | 770mA | ||
FASNR5020-680M0R65 | 68.00uH | 0.9620Ω | 650mA | ||
FASNR5020-820M0R65 | 82.00uH | 1.1580Ω | 650mA | ||
FASNR5020-R22N9R0 | 0.22uH | 0.0110Ω | 9000mA | ||
FASNR5020-R24N8R0 | 0.24uH | 0.0110Ω | 8000mA | ||
FASNR5020-R47N6R15 | 0.47uH | 0.0170Ω | 6150mA | ||
FASNR5020-R56N8R5 | 0.56uH | 0.0220Ω | 8500mA | ||
FASNR5020-R68N5R5 | 0.68uH | 0.0220Ω | 5500mA | ||
FASNR5020-R75N5R5 | 0.75uH | 0.0220Ω | 5500mA | ||
FASNR5040 | 1.0-1000uH | 0.0160-7.8000Ω | 210-7350mA | - | |
FASNR5040-1R0N7R35 | 1.00uH | 0.0160Ω | 7350mA | ||
FASNR5040-1R2N6R5 | 1.20uH | 0.0210Ω | 6500mA | ||
FASNR5040-1R5N6R3 | 1.50uH | 0.0200Ω | 6300mA | ||
FASNR5040-1R8N5R5 | 1.80uH | 0.0210Ω | 5500mA | ||
FASNR5040-2R2N4R9 | 2.20uH | 0.0250Ω | 4900mA | ||
FASNR5040-2R7N4R3 | 2.70uH | 0.0290Ω | 4300mA | ||
FASNR5040-3R0N4R15 | 3.00uH | 0.0290Ω | 4150mA | ||
FASNR5040-3R3N3R95 | 3.30uH | 0.0310Ω | 3950mA | ||
FASNR5040-3R6N3R8 | 3.60uH | 0.0340Ω | 3800mA | ||
FASNR5040-3R9N3R55 | 3.90uH | 0.0350Ω | 3550mA | ||
FASNR5040-4R7N3R5 | 4.70uH | 0.0390Ω | 3500mA | ||
FASNR5040-5R6N3R0 | 5.60uH | 0.0460Ω | 3000mA | ||
FASNR5040-6R8N2R9 | 6.80uH | 0.0560Ω | 2900mA | ||
FASNR5040-8R2N2R7 | 8.20uH | 0.0620Ω | 2700mA | ||
FASNR5040-100M2R35 | 10.00uH | 0.0830Ω | 2350mA | ||
FASNR5040-101M0R75 | 100.00uH | 0.7280Ω | 750mA | ||
FASNR5040-102M0R21 | 1000.00uH | 7.8000Ω | 210mA | ||
FASNR5040-150M2R0 | 15.00uH | 0.1120Ω | 2000mA | ||
FASNR5040-151M0R65 | 150.00uH | 0.9750Ω | 650mA | ||
FASNR5040-220M1R6 | 22.00uH | 0.1680Ω | 1600mA | ||
FASNR5040-330M1R3 | 33.00uH | 0.2440Ω | 1300mA | ||
FASNR5040-470M1R1 | 47.00uH | 0.3540Ω | 1100mA | ||
FASNR5040-680M0R9 | 68.00uH | 0.5200Ω | 900mA | ||
FASNR6028 | 1.0-1000uH | 0.0130-7.5400Ω | 180-6500mA | - | |
FASNR6028-1R0N5R75 | 1.00uH | 0.0130Ω | 5750mA | ||
FASNR6028-1R2N6R4 | 1.20uH | 0.0170Ω | 6400mA | ||
FASNR6028-1R5N6R0 | 1.50uH | 0.0170Ω | 6000mA | ||
FASNR6028-2R2N5R1 | 2.20uH | 0.0260Ω | 5100mA | ||
FASNR6028-2R7N3R8 | 2.70uH | 0.0260Ω | 3800mA | ||
FASNR6028-3R3N4R15 | 3.30uH | 0.0330Ω | 4150mA | ||
FASNR6028-4R7N3R0 | 4.70uH | 0.0390Ω | 3000mA | ||
FASNR6028-5R1N3R2 | 5.10uH | 0.0560Ω | 3200mA | ||
FASNR6028-6R2N3R05 | 6.20uH | 0.0610Ω | 3050mA | ||
FASNR6028-6R8N2R6 | 6.80uH | 0.0610Ω | 2600mA | ||
FASNR6028-8R2N2R3 | 8.20uH | 0.0720Ω | 2300mA | ||
FASNR6028-9R1M2R55 | 9.10uH | 0.0960Ω | 2550mA | ||
FASNR6028-100M2R04 | 10.00uH | 0.0940Ω | 2040mA | ||
FASNR6028-101M0R65 | 100.00uH | 0.6500Ω | 650mA | ||
FASNR6028-102M0R18 | 1000.00uH | 7.5400Ω | 180mA | ||
FASNR6028-120M1R8 | 12.00uH | 0.1040Ω | 1800mA | ||
FASNR6028-150M1R75 | 15.00uH | 0.1630Ω | 1750mA | ||
FASNR6028-180M1R52 | 18.00uH | 0.1560Ω | 1520mA | ||
FASNR6028-220M1R45 | 22.00uH | 0.1820Ω | 1450mA | ||
FASNR6028-270M1R5 | 27.00uH | 0.2020Ω | 1500mA | ||
FASNR6028-330M1R35 | 33.00uH | 0.2410Ω | 1350mA | ||
FASNR6028-331M | 330.00uH | 2.4000Ω | 270mA | ||
FASNR6028-360M1R25 | 36.00uH | 0.2800Ω | 1250mA | ||
FASNR6028-390M1R25 | 39.00uH | 0.2930Ω | 1250mA | ||
FASNR6028-401M0R3 | 400.00uH | 2.8080Ω | 300mA | ||
FASNR6028-470M1R15 | 47.00uH | 0.4100Ω | 1150mA | ||
FASNR6028-560M1R05 | 56.00uH | 0.4490Ω | 1050mA | ||
FASNR6028-680M0R8 | 68.00uH | 0.4680Ω | 800mA | ||
FASNR6028-750M0R9 | 75.00uH | 0.5330Ω | 900mA | ||
FASNR6028-820M0R8 | 82.00uH | 0.6500Ω | 800mA | ||
FASNR6028-R82N6R5 | 0.82uH | 0.0160Ω | 6500mA | ||
FASNR6045 | 0.47-680.00uH | 0.0080-3.25Ω | 800-15000mA | - | |
FASNR6045-1R0N9R85 | 1.00uH | 0.0140Ω | 9850mA | ||
FASNR6045-1R2N8R35 | 1.20uH | 0.0130Ω | 8350mA | ||
FASNR6045-1R3N8R35 | 1.30uH | 0.0130Ω | 8350mA | ||
FASNR6045-1R5N8R8 | 1.50uH | 0.0130Ω | 8350mA | ||
FASNR6045-1R8N7R6 | 1.80uH | 0.0160Ω | 7600mA | ||
FASNR6045-2R2N6R75 | 2.20uH | 0.0180Ω | 6750mA | ||
FASNR6045-2R3N6R0 | 2.30uH | 0.0270Ω | 6000mA | ||
FASNR6045-2R7N5R75 | 2.70uH | 0.0200Ω | 5750mA | ||
FASNR6045-3R0N5R6 | 3.00uH | 0.0260Ω | 5600mA | ||
FASNR6045-3R3N5R9 | 3.30uH | 0.0270Ω | 5900mA | ||
FASNR6045-3R6N5R25 | 3.60uH | 0.0270Ω | 5250mA | ||
FASNR6045-4R3N4R45 | 4.30uH | 0.030Ω | 4450mA | ||
FASNR6045-4R5N4R97 | 4.50uH | 0.0340Ω | 4970mA | ||
FASNR6045-4R7N4R97 | 4.70uH | 0.0340Ω | 4970mA | ||
FASNR6045-5R1N4R4 | 5.10uH | 0.0340Ω | 4400mA | ||
FASNR6045-5R6N4R15 | 5.60uH | 0.0380Ω | 4150mA | ||
FASNR6045-6R2N4R43 | 6.20uH | 0.0400Ω | 4430mA | ||
FASNR6045-6R3N4R43 | 6.30uH | 0.0400Ω | 4430mA | ||
FASNR6045-6R8N3R9 | 6.80uH | 0.0400Ω | 3900mA | ||
FASNR6045-7R5N3R5 | 7.50uH | 0.0440Ω | 3500mA | ||
FASNR6045-8R2N3R9 | 8.20uH | 0.0560Ω | 3900mA | ||
FASNR6045-9R1M3R35 | 9.10uH | 0.0560Ω | 3350mA | ||
FASNR6045-100M3R2 | 10.00uH | 0.0620Ω | 3200mA | ||
FASNR6045-120M2R8 | 12.00uH | 0.0750Ω | 2800mA | ||
FASNR6045-150M2R5 | 15.00uH | 0.0880Ω | 2500mA | ||
FASNR6045-180M2R2 | 18.00uH | 0.1050Ω | 2200mA | ||
FASNR6045-220M2R05 | 22.00uH | 0.1160Ω | 2050mA | ||
FASNR6045-221M0R8 | 220.00uH | 1.4950Ω | 800mA | ||
FASNR6045-270M1R9 | 27.00uH | 0.1330Ω | 1900mA | ||
FASNR6045-300M1R7 | 30.00uH | 0.1720Ω | 1700mA | ||
FASNR6045-330M1R65 | 33.00uH | 0.1780Ω | 1650mA | ||
FASNR6045-360M1R62 | 36.00uH | 0.2250Ω | 1620mA | ||
FASNR6045-390M1R5 | 39.00uH | 0.2340Ω | 1500mA | ||
FASNR6045-430M1R63 | 43.00uH | 0.2600Ω | 1630mA | ||
FASNR6045-470M1R4 | 47.00uH | 0.2600Ω | 1400mA | ||
FASNR6045-681M0R42 | 680.00uH | 3.2500Ω | 420mA | ||
FASNR6045-R47N15R0 | 0.47uH | 0.0080Ω | 15000mA | ||
FASNR6045-R56N15R0 | 0.56uH | 0.0080Ω | 15000mA | ||
FASNR6045-R68N11R0 | 0.68uH | 0.0080Ω | 11000mA | ||
FASNR6045-R82N10R35 | 0.82uH | 0.0100Ω | 10350mA | ||
FASNR8040 | 0.82-100uH | 0.01-0.377Ω | 1150-13800mA | - | |
FASNR8040-1R0N9R85 | 1.00uH | 0.0100Ω | 9850mA | ||
FASNR8040-1R2N10R0 | 1.20uH | 0.0130Ω | 10000mA | ||
FASNR8040-1R5N8R15 | 1.50uH | 0.0130Ω | 8150mA | ||
FASNR8040-2R0N9R25 | 2.00uH | 0.0160Ω | 9250mA | ||
FASNR8040-2R2N7R1 | 2.20uH | 0.0160Ω | 7100mA | ||
FASNR8040-3R0N6R1 | 3.00uH | 0.0180Ω | 6100mA | ||
FASNR8040-3R3N6R5 | 3.30uH | 0.0220Ω | 6500mA | ||
FASNR8040-3R6N7R52 | 3.60uH | 0.0220Ω | 7520mA | ||
FASNR8040-3R9N5R75 | 3.90uH | 0.0220Ω | 5750mA | ||
FASNR8040-4R7N5R9 | 4.70uH | 0.0250Ω | 5900mA | ||
FASNR8040-5R1N4R7 | 5.10uH | 0.0250Ω | 4700mA | ||
FASNR8040-5R6N6R0 | 5.60uH | 0.0270Ω | 6000mA | ||
FASNR8040-6R2N4R45 | 6.20uH | 0.0270Ω | 4450mA | ||
FASNR8040-6R8N4R55 | 6.80uH | 0.0310Ω | 4550mA | ||
FASNR8040-8R2N4R2 | 8.20uH | 0.0340Ω | 4200mA | ||
FASNR8040-100M3R6 | 10.00uH | 0.0380Ω | 3600mA | ||
FASNR8040-101M1R15 | 100.00uH | 0.3770Ω | 1150mA | ||
FASNR8040-120M3R5 | 12.00uH | 0.0530Ω | 3500mA | ||
FASNR8040-150M2R95 | 15.00uH | 0.0610Ω | 2950mA | ||
FASNR8040-180M2R7 | 18.00uH | 0.0690Ω | 2700mA | ||
FASNR8040-220M2R4 | 22.00uH | 0.0900Ω | 2400mA | ||
FASNR8040-270M2R15 | 27.00uH | 0.1010Ω | 2150mA | ||
FASNR8040-330M2R05 | 33.00uH | 0.1260Ω | 2050mA | ||
FASNR8040-360M2R0 | 36.00uH | 0.1330Ω | 2000mA | ||
FASNR8040-390M1R95 | 39.00uH | 0.1390Ω | 1950mA | ||
FASNR8040-430M1R9 | 43.00uH | 0.1470Ω | 1900mA | ||
FASNR8040-470M1R75 | 47.00uH | 0.1770Ω | 1750mA | ||
FASNR8040-510M1R7 | 51.00uH | 0.1850Ω | 1700mA | ||
FASNR8040-560M1R55 | 56.00uH | 0.1920Ω | 1550mA | ||
FASNR8040-620M1R5 | 62.00uH | 0.2370Ω | 1500mA | ||
FASNR8040-680M1R45 | 68.00uH | 0.2550Ω | 1450mA | ||
FASNR8040-R82N13R5 | 0.82uH | 0.0100Ω | 13800mA | ||
FASNR8065 | 4.70-68.00uH | 0.0220-0.2300Ω | 2700-8500mA | - | |
FASNR8065-4R7N8R5 | 4.70uH | 0.0220Ω | 8500mA | ||
FASNR8065-5R6N8R0 | 5.60uH | 0.0260Ω | 8000mA | ||
FASNR8065-6R8N7R5 | 6.80uH | 0.0286Ω | 4500mA | ||
FASNR8065-8R2N7R0 | 8.20uH | 0.0310Ω | 7000mA | ||
FASNR8065-100M6R6 | 10.00uH | 0.0400Ω | 6600mA | ||
FASNR8065-150M4R8 | 15.00uH | 0.0620Ω | 4800mA | ||
FASNR8065-220M4R3 | 22.00uH | 0.0650Ω | 4300mA | ||
FASNR8065-330M3R5 | 33.00uH | 0.1180Ω | 3500mA | ||
FASNR8065-470M3R0 | 47.00uH | 0.1560Ω | 3000mA | ||
FASNR8065-680M2R7 | 68.00uH | 0.2300Ω | 2700mA | ||
FALQH-1210 | 0.1-560uH | 0.25-28.0Ω | 40-700mA | - | |
FALQH-1210-1R0M | 1.00uH | 0.5000Ω | 445mA | ||
FALQH-1210-1R2M | 1.20uH | 0.6000Ω | 425mA | ||
FALQH-1210-1R5M | 1.50uH | 0.6000Ω | 400mA | ||
FALQH-1210-1R8M | 1.80uH | 0.7000Ω | 390mA | ||
FALQH-1210-2R2M | 2.20uH | 0.8000Ω | 370mA | ||
FALQH-1210-2R7M | 2.70uH | 0.9000Ω | 320mA | ||
FALQH-1210-3R3M | 3.30uH | 1.0000Ω | 300mA | ||
FALQH-1210-3R9M | 3.90uH | 1.1000Ω | 290mA | ||
FALQH-1210-4R7K | 4.70uH | 1.2000Ω | 270mA | ||
FALQH-1210-5R6K | 5.60uH | 1.3000Ω | 250mA | ||
FALQH-1210-6R8K | 6.80uH | 1.5000Ω | 240mA | ||
FALQH-1210-8R2K | 8.20uH | 1.6000Ω | 225mA | ||
FALQH-1210-100K | 10.00uH | 1.8000Ω | 190mA | ||
FALQH-1210-101K | 100.00uH | 7.0000Ω | 80mA | ||
FALQH-1210-120K | 12.00uH | 2.0000Ω | 180mA | ||
FALQH-1210-121K | 120.00uH | 8.0000Ω | 75mA | ||
FALQH-1210-150K | 15.00uH | 2.2000Ω | 170mA | ||
FALQH-1210-151K | 150.00uH | 9.3000Ω | 70mA | ||
FALQH-1210-180K | 18.00uH | 2.5000Ω | 165mA | ||
FALQH-1210-181K | 180.00uH | 10.2000Ω | 65mA | ||
FALQH-1210-220K | 22.00uH | 2.8000Ω | 150mA | ||
FALQH-1210-221K | 220.00uH | 11.8000Ω | 65mA | ||
FALQH-1210-270K | 27.00uH | 3.1000Ω | 125mA | ||
FALQH-1210-271K | 270.00uH | 12.5000Ω | 65mA | ||
FALQH-1210-330K | 33.00uH | 3.5000Ω | 115mA | ||
FALQH-1210-331K | 330.00uH | 13.0000Ω | 65mA | ||
FALQH-1210-390K | 39.00uH | 3.9000Ω | 110mA | ||
FALQH-1210-391K | 390.00uH | 22.0000Ω | 50mA | ||
FALQH-1210-470K | 47.00uH | 4.3000Ω | 100mA | ||
FALQH-1210-471K | 470.00uH | 24.7000Ω | 45mA | ||
FALQH-1210-560K | 56.00uH | 4.9000Ω | 85mA | ||
FALQH-1210-561K | 560.00uH | 28.0000Ω | 40mA | ||
FALQH-1210-680K | 68.00uH | 5.5000Ω | 80mA | ||
FALQH-1210-820K | 82.00uH | 6.2000Ω | 70mA | ||
FALQH-1210-R10M | 0.10uH | 0.2500Ω | 700mA | ||
FALQH-1210-R18M | 0.18uH | 0.2500Ω | 650mA | ||
FALQH-1210-R27M | 0.27uH | 0.2500Ω | 600mA | ||
FALQH-1210-R39M | 0.39uH | 0.2500Ω | 530mA | ||
FALQH-1210-R56M | 0.56uH | 0.2500Ω | 530mA | ||
FALQH-1210-R68M | 0.68uH | 0.2500Ω | 470mA | ||
FALQH-1210-R82M | 0.82uH | 0.2500Ω | 450mA | ||
FALQH-1812 | 1.0-2200uH | 0.00094-30Ω | 30-550mA | - | |
FALQH-1812-1R0M | 1.00uH | 0.2000Ω | 550mA | ||
FALQH-1812-1R2M | 1.20uH | 0.2500Ω | 530mA | ||
FALQH-1812-1R5M | 1.50uH | 0.2800Ω | 500mA | ||
FALQH-1812-1R8M | 1.80uH | 0.3000Ω | 500mA | ||
FALQH-1812-2R2M | 2.20uH | 0.3000Ω | 500mA | ||
FALQH-1812-2R7M | 2.70uH | 0.3200Ω | 500mA | ||
FALQH-1812-3R3M | 3.30uH | 0.3500Ω | 500mA | ||
FALQH-1812-3R9M | 3.90uH | 0.3800Ω | 500mA | ||
FALQH-1812-4R7K | 4.70uH | 0.4000Ω | 500mA | ||
FALQH-1812-5R6K | 5.60uH | 0.4700Ω | 500mA | ||
FALQH-1812-6R8K | 6.80uH | 0.5000Ω | 500mA | ||
FALQH-1812-8R2K | 8.20uH | 0.5600Ω | 500mA | ||
FALQH-1812-100K | 10.00uH | 0.5600Ω | 450mA | ||
FALQH-1812-101K | 100.00uH | 2.5000Ω | 175mA | ||
FALQH-1812-102K | 1000.00uH | 25.000Ω | 50mA | ||
FALQH-1812-120K | 12.00uH | 0.6200Ω | 450mA | ||
FALQH-1812-121K | 120.00uH | 3.0000Ω | 165mA | ||
FALQH-1812-122K | 1200.00uH | 30.0000Ω | 45mA | ||
FALQH-1812-150K | 15.00uH | 0.7300Ω | 390mA | ||
FALQH-1812-152K | 1500.00uH | 0.0370Ω | 40mA | ||
FALQH-1812-180K | 18.00uH | 0.0082Ω | 370mA | ||
FALQH-1812-181K | 180.00uH | 0.0045Ω | 135mA | ||
FALQH-1812-182K | 180.00uH | 0.0450Ω | 35mA | ||
FALQH-1812-220K | 22.00uH | 0.00094Ω | 350mA | ||
FALQH-1812-221K | 220.00uH | 0.0054Ω | 125mA | ||
FALQH-1812-222K | 2200.00uH | 0.0500Ω | 30mA | ||
FALQH-1812-270K | 27.00uH | 0.0011Ω | 330mA | ||
FALQH-1812-271K | 270.00uH | 0.0068Ω | 115mA | ||
FALQH-1812-330K | 33.00uH | 0.0012Ω | 310mA | ||
FALQH-1812-331K | 330.00uH | 0.0082Ω | 100mA | ||
FALQH-1812-390K | 39.00uH | 0.0014Ω | 280mA | ||
FALQH-1812-391K | 390.00uH | 0.0097Ω | 90mA | ||
FALQH-1812-470K | 47.00uH | 0.0015Ω | 250mA | ||
FALQH-1812-471K | 470.00uH | 0.0120Ω | 80mA | ||
FALQH-1812-560K | 56.00uH | 0.0017Ω | 225mA | ||
FALQH-1812-561K | 560.00uH | 0.0150Ω | 70mA | ||
FALQH-1812-680K | 68.00uH | 0.0019Ω | 225mA | ||
FALQH-1812-681K | 680.00uH | 0.0170Ω | 65mA | ||
FALQH-1812-820K | 82.00uH | 0.0022Ω | 185mA | ||
FALQH-1812-821K | 820.00uH | 0.0210Ω | 60mA | ||
FALQH-2220 | 0.12-10000uH | 0.0100-140.0000Ω | 50-6000mA | - | |
FALQH-2220-1R0M | 1.00uH | 0.0270Ω | 4000mA | ||
FALQH-2220-1R5M | 1.50uH | 0.0310Ω | 3700mA | ||
FALQH-2220-2R2M | 2.20uH | 0.0410Ω | 3200mA | ||
FALQH-2220-3R3M | 3.30uH | 0.0500Ω | 2900mA | ||
FALQH-2220-4R7M | 4.70uH | 0.0570Ω | 2700mA | ||
FALQH-2220-6R8M | 6.80uH | 0.1000Ω | 2000mA | ||
FALQH-2220-100K | 10.00uH | 0.1300Ω | 1700mA | ||
FALQH-2220-101K | 100.00uH | 1.2000Ω | 560mA | ||
FALQH-2220-102K | 1000.00uH | 14.4000Ω | 150mA | ||
FALQH-2220-103K | 10000.00uH | 140.0000Ω | 50mA | ||
FALQH-2220-150K | 15.00uH | 0.2100Ω | 1400mA | ||
FALQH-2220-151K | 150.00uH | 2.6600Ω | 420mA | ||
FALQH-2220-152K | 1500.00uH | 30.1000Ω | 100mA | ||
FALQH-2220-220K | 22.00uH | 0.2700Ω | 1200mA | ||
FALQH-2220-221K | 220.00uH | 3.3600Ω | 320mA | ||
FALQH-2220-222K | 2200.00uH | 45.0000Ω | 90mA | ||
FALQH-2220-330K | 33.00uH | 0.4500Ω | 900mA | ||
FALQH-2220-331K | 330.00uH | 6.1600Ω | 270mA | ||
FALQH-2220-332K | 3300.00uH | 50.0000Ω | 80mA | ||
FALQH-2220-470K | 47.00uH | 0.5600Ω | 800mA | ||
FALQH-2220-471K | 470.00uH | 7.5600Ω | 240mA | ||
FALQH-2220-472K | 4700.00uH | 61.0000Ω | 70mA | ||
FALQH-2220-680K | 68.00uH | 0.9400Ω | 640mA | ||
FALQH-2220-681K | 680.00uH | 11.3000Ω | 190mA | ||
FALQH-2220-682K | 6800.00uH | 100.0000Ω | 60mA | ||
FALQH-2220-822K | 8200.00uH | 125.0000Ω | 50mA | ||
FALQH-2220-R12M | 0.12uH | 0.0100Ω | 6000mA | ||
FALQH-2220-R27M | 0.27uH | 0.0140Ω | 5300mA | ||
FALQH-2220-R47M | 0.47uH | 0.0180Ω | 4800mA | ||
FASDR0301 | 2.20-330uH | 0.1300-16.0000Ω | 900-790mA | - | |
FASDR0301-2R2M0R79 | 2.20uH | 0.1300Ω | 790mA | ||
FASDR0301-3R3M0R75 | 3.30uH | 0.1500Ω | 750mA | ||
FASDR0301-4R7M0R65 | 4.70uH | 0.1800Ω | 650mA | ||
FASDR0301-100M0R45 | 10.00uH | 0.3900Ω | 450mA | ||
FASDR0301-101M0R15 | 100.00uH | 2.8700Ω | 150mA | ||
FASDR0301-150M0R3 | 15.00uH | 0.7500Ω | 300mA | ||
FASDR0301-220M0R25 | 22.00uH | 0.9200Ω | 250mA | ||
FASDR0301-221M0R13 | 220.00uH | 10.0000Ω | 130mA | ||
FASDR0301-330M0R20 | 33.00uH | 1.4300Ω | 200mA | ||
FASDR0301-331M0R09 | 330.00uH | 16.0000Ω | 90mA | ||
FASDR0301-470M0R17 | 47.00uH | 1.6900Ω | 170mA | ||
FASDR0301-680M0R16 | 68.00uH | 2.7000Ω | 160mA | ||
FASDR0302 | 1.00-680uH | 0.0350-20.5000Ω | 40-3200mA | - | |
FASDR0302-1R0M3R2 | 1.00uH | 0.0350Ω | 3200mA | ||
FASDR0302-1R5M2R6 | 1.50uH | 0.0750Ω | 2600mA | ||
FASDR0302-2R2M2R35 | 2.20uH | 0.1300Ω | 2350mA | ||
FASDR0302-2R7M1R9 | 2.70uH | 0.1400Ω | 1900mA | ||
FASDR0302-3R3M1R8 | 3.30uH | 0.1700Ω | 1800mA | ||
FASDR0302-4R7M1R4 | 4.70uH | 0.2100Ω | 1400mA | ||
FASDR0302-5R6M1R2 | 5.60uH | 0.2200Ω | 1200mA | ||
FASDR0302-6R8M1R15 | 6.80uH | 0.2500Ω | 1150mA | ||
FASDR0302-100M1R1 | 10.00uH | 0.3200Ω | 1100mA | ||
FASDR0302-101K0R25 | 100.00uH | 2.800Ω | 250mA | ||
FASDR0302-120M0R85 | 12.00uH | 0.3500Ω | 850mA | ||
FASDR0302-150M0R8 | 15.00uH | 0.4200Ω | 800mA | ||
FASDR0302-151K0R2 | 150.00uH | 4.2000Ω | 200mA | ||
FASDR0302-220M0R65 | 22.00uH | 0.5800Ω | 650mA | ||
FASDR0302-221K0R16 | 220.00uH | 6.0000Ω | 160mA | ||
FASDR0302-270M0R5 | 27.00uH | 0.6500Ω | 500mA | ||
FASDR0302-330K0R45 | 33.00uH | 0.8000Ω | 450mA | ||
FASDR0302-331K0R12 | 330.00uH | 9.5000Ω | 120mA | ||
FASDR0302-391K0R11 | 390.00uH | 10.5000Ω | 110mA | ||
FASDR0302-470K0R4 | 47.00uH | 1.2000Ω | 400mA | ||
FASDR0302-471K0R95 | 470.00uH | 11.5000Ω | 95mA | ||
FASDR0302-560K0R31 | 56.00uH | 1.6500Ω | 310mA | ||
FASDR0302-680K0R29 | 68.00uH | 1.8000Ω | 290mA | ||
FASDR0302-681K0R04 | 680.00uH | 20.5000Ω | 40mA | ||
FASDR0403 | 1.00-2200.00uH | 0.0300-30.0000Ω | 20-3800mA | - | |
FASDR0403-1R0M3R8 | 1.00uH | 0.0300Ω | 3800mA | ||
FASDR0403-1R5M3R5 | 1.50uH | 0.0360Ω | 3500mA | ||
FASDR0403-2R2M2R9 | 2.20uH | 0.0470Ω | 2900mA | ||
FASDR0403-2R7M2R5 | 2.70uH | 0.0520Ω | 2500mA | ||
FASDR0403-3R3M2R4 | 3.30uH | 0.0580Ω | 2400mA | ||
FASDR0403-3R9M1R98 | 3.90uH | 0.0760Ω | 1980mA | ||
FASDR0403-4R7M1R9 | 4.70uH | 0.0940Ω | 1900mA | ||
FASDR0403-5R6M1R8 | 5.60uH | 0.1000Ω | 1800mA | ||
FASDR0403-6R8M1R6 | 6.80uH | 0.1200Ω | 1600mA | ||
FASDR0403-8R2M1R26 | 8.20uH | 0.1600Ω | 1260mA | ||
FASDR0403-100M1R15 | 10.00uH | 0.1800Ω | 1150mA | ||
FASDR0403-101K0R4 | 100.00uH | 1.5200Ω | 400mA | ||
FASDR0403-102K0R13 | 1000.00uH | 15.6000Ω | 130mA | ||
FASDR0403-120M1R05 | 12.00uH | 0.2100Ω | 1050mA | ||
FASDR0403-150M0R92 | 15.00uH | 0.2400Ω | 920mA | ||
FASDR0403-151K0R38 | 150.00uH | 2.0000Ω | 380mA | ||
FASDR0403-180M0R84 | 18.00uH | 0.3400Ω | 840mA | ||
FASDR0403-220M0R76 | 22.00uH | 0.3800Ω | 760mA | ||
FASDR0403-221K0R32 | 220.00uH | 3.4000Ω | 320mA | ||
FASDR0403-222M0R02 | 2200.00uH | 30.0000Ω | 20mA | ||
FASDR0403-270M0R71 | 27.00uH | 0.4100Ω | 710mA | ||
FASDR0403-330K0R7 | 33.00uH | 0.5100Ω | 700mA | ||
FASDR0403-331K0R28 | 330.00uH | 5.3000Ω | 280mA | ||
FASDR0403-390K0R66 | 39.00uH | 0.5600Ω | 660mA | ||
FASDR0403-470K0R65 | 47.00uH | 0.8000Ω | 650mA | ||
FASDR0403-471K0R2 | 470.00uH | 6.8000Ω | 200mA | ||
FASDR0403-560K0R5 | 56.00uH | 0.9400Ω | 500mA | ||
FASDR0403-680K0R48 | 68.00uH | 1.1200Ω | 480mA | ||
FASDR0403-681K0R16 | 680.00uH | 10.0000Ω | 160mA | ||
FASDR0403-820K0R45 | 82.00uH | 1.3500Ω | 450mA | ||
FASDR0502 | 1-1000uH | 0.021-15.0000Ω | 140-4000mA | - | |
FASDR0502-1R0M4R0 | 1.00uH | 0.0210Ω | 4000mA | ||
FASDR0502-1R5M4R0 | 1.50uH | 0.0600Ω | 4000mA | ||
FASDR0502-1R8M3R7 | 1.80uH | 0.0650Ω | 3700mA | ||
FASDR0502-2R2M3R5 | 2.20uH | 0.0700Ω | 3500mA | ||
FASDR0502-2R7M3R2 | 2.70uH | 0.0800Ω | 3200mA | ||
FASDR0502-3R3M2R7 | 3.30uH | 0.1000Ω | 2700mA | ||
FASDR0502-3R9M2R4 | 3.90uH | 0.1200Ω | 2400mA | ||
FASDR0502-4R7M2R0 | 4.70uH | 0.1400Ω | 2000mA | ||
FASDR0502-5R6M1R8 | 5.60uH | 0.1500Ω | 1800mA | ||
FASDR0502-6R8M1R5 | 6.80uH | 0.1600Ω | 1500mA | ||
FASDR0502-8R2M1R4 | 8.20uH | 0.1700Ω | 1400mA | ||
FASDR0502-100M1R3 | 10.00uH | 0.2000Ω | 1300mA | ||
FASDR0502-101K0R4 | 100.00uH | 1.4000Ω | 400mA | ||
FASDR0502-102K0R14 | 1000.00uH | 15.0000Ω | 140mA | ||
FASDR0502-120M1R1 | 12.00uH | 0.2500Ω | 1100mA | ||
FASDR0502-121K0R35 | 120.00uH | 1.7500Ω | 350mA | ||
FASDR0502-150M1R05 | 15.00uH | 0.2500Ω | 1050mA | ||
FASDR0502-151K0R25 | 150.00uH | 2.0000Ω | 250mA | ||
FASDR0502-180M1R0 | 18.00uH | 0.3000Ω | 1000mA | ||
FASDR0502-181K0R25 | 180.00uH | 2.6000Ω | 250mA | ||
FASDR0502-220M0R9 | 22.00uH | 0.3500Ω | 900mA | ||
FASDR0502-221K0R2 | 220.00uH | 3.00Ω | 200mA | ||
FASDR0502-270M0R85 | 27.00uH | 0.4000Ω | 850mA | ||
FASDR0502-271K0R18 | 270.00uH | 3.7000Ω | 180mA | ||
FASDR0502-330K0R75 | 33.00uH | 0.5000Ω | 750mA | ||
FASDR0502-331K0R17 | 330.00uH | 4.3000Ω | 170mA | ||
FASDR0502-390K0R7 | 39.00uH | 0.5500Ω | 700mA | ||
FASDR0502-391K0R16 | 390.00uH | 6.0000Ω | 160mA | ||
FASDR0502-470K0R6 | 47.00uH | 0.6500Ω | 600mA | ||
FASDR0502-471K0R15 | 470.00uH | 6.7000Ω | 150mA | ||
FASDR0502-560K0R55 | 56.00uH | 0.7600Ω | 550mA | ||
FASDR0502-680K0R5 | 68.00uH | 0.9500Ω | 500mA | ||
FASDR0502-820K0R45 | 82.00uH | 1.2000Ω | 450mA | ||
FASDR0503 | 1-1000uH | 0.03-9.87Ω | 100-4500mA | - | |
FASDR0503-1R0M4R5 | 1.00uH | 0.0300Ω | 4500mA | ||
FASDR0503-1R5M4R2 | 1.50uH | 0.0400Ω | 4200mA | ||
FASDR0503-1R8M3R49 | 1.80uH | 0.0500Ω | 3490mA | ||
FASDR0503-2R2M3R12 | 2.20uH | 0.0600Ω | 3120mA | ||
FASDR0503-2R7M2R67 | 2.70uH | 0.0700Ω | 2670mA | ||
FASDR0503-3R3M2R51 | 3.30uH | 0.0800Ω | 2510mA | ||
FASDR0503-3R9M2R35 | 3.90uH | 0.0900Ω | 2350mA | ||
FASDR0503-4R7M2R14 | 4.70uH | 0.1400Ω | 2140mA | ||
FASDR0503-5R6M1R93 | 5.60uH | 0.1500Ω | 1930mA | ||
FASDR0503-6R8M1R82 | 6.80uH | 0.1600Ω | 1820mA | ||
FASDR0503-8R2M1R51 | 8.20uH | 0.1700Ω | 1510mA | ||
FASDR0503-100M1R3 | 10.00uH | 0.1800Ω | 1300mA | ||
FASDR0503-101K0R47 | 100.00uH | 1.3000Ω | 470mA | ||
FASDR0503-102K0R1 | 1000.00uH | 9.8700Ω | 100mA | ||
FASDR0503-120M1R27 | 12.00uH | 0.2000Ω | 1270mA | ||
FASDR0503-121K0R42 | 120.00uH | 1.3800Ω | 420mA | ||
FASDR0503-150M1R23 | 15.00uH | 0.2200Ω | 1230mA | ||
FASDR0503-151K0R35 | 150.00uH | 1.8100Ω | 350mA | ||
FASDR0503-180M1R17 | 18.00uH | 0.2500Ω | 1170mA | ||
FASDR0503-181K0R3 | 180.00uH | 1.9500Ω | 300mA | ||
FASDR0503-220M1R06 | 22.00uH | 0.3500Ω | 1060mA | ||
FASDR0503-221K0R28 | 220.00uH | 2.1000Ω | 280mA | ||
FASDR0503-270M0R85 | 27.00uH | 0.4500Ω | 850mA | ||
FASDR0503-271K0R23 | 270.00uH | 2.4200Ω | 230mA | ||
FASDR0503-330K0R8 | 33.00uH | 0.5500Ω | 800mA | ||
FASDR0503-331K0R19 | 330.00uH | 3.8200Ω | 190mA | ||
FASDR0503-390K0R78 | 39.00uH | 0.7000Ω | 780mA | ||
FASDR0503-391K0R16 | 390.00uH | 4.6800Ω | 160mA | ||
FASDR0503-470K0R75 | 47.00uH | 0.7200Ω | 750mA | ||
FASDR0503-471K0R15 | 470.00uH | 5.1000Ω | 150mA | ||
FASDR0503-560K0R56 | 56.00uH | 0.8400Ω | 560mA | ||
FASDR0503-561K0R14 | 560.00uH | 6.0000Ω | 140mA | ||
FASDR0503-680K0R52 | 68.00uH | 0.9000Ω | 520mA | ||
FASDR0503-681K0R13 | 680.00uH | 7.6000Ω | 130mA | ||
FASDR0503-820K0R5 | 82.00uH | 0.9500Ω | 500mA | ||
FASDR0503-821K0R11 | 820.00uH | 9.1200Ω | 110mA | ||
FASDR0504 | 1-2200uH | 0.028-15Ω | 100-4700mA | - | |
FASDR0504-1R0M4R7 | 1.00uH | 0.0250Ω | 4700mA | ||
FASDR0504-1R4M4R4 | 1.40uH | 0.0300Ω | 4400mA | ||
FASDR0504-1R8M4R0 | 1.80uH | 0.0350Ω | 4000mA | ||
FASDR0504-2R2M3R2 | 2.20uH | 0.0400Ω | 3200mA | ||
FASDR0504-2R7M3R0 | 2.70uH | 0.0450Ω | 3000mA | ||
FASDR0504-3R3M2R8 | 3.30uH | 0.0480Ω | 2800mA | ||
FASDR0504-3R9M2R5 | 3.90uH | 0.0550Ω | 2500mA | ||
FASDR0504-4R7M2R4 | 4.70uH | 0.0600Ω | 2400mA | ||
FASDR0504-6R8M2R3 | 6.80uH | 0.0650Ω | 2300mA | ||
FASDR0504-100M1R44 | 10.00uH | 0.0850Ω | 1440mA | ||
FASDR0504-101K0R52 | 100.00uH | 0.7000Ω | 520mA | ||
FASDR0504-102K0R15 | 1000.00uH | 7.0000Ω | 150mA | ||
FASDR0504-120M1R4 | 120.00uH | 0.1000Ω | 1400mA | ||
FASDR0504-121K0R48 | 120.00uH | 0.7700Ω | 480mA | ||
FASDR0504-150M1R3 | 15.00uH | 0.1200Ω | 1300mA | ||
FASDR0504-151K0R46 | 150.00uH | 1.2000Ω | 460mA | ||
FASDR0504-152K0R12 | 1500.00uH | 10.0000Ω | 120mA | ||
FASDR0504-180M1R23 | 18.00uH | 0.1500Ω | 1230mA | ||
FASDR0504-182K0R11 | 1800.00uH | 12.0000Ω | 110mA | ||
FASDR0504-220M1R11 | 22.00uH | 0.17000Ω | 1110mA | ||
FASDR0504-221K0R42 | 220.00uH | 1.5700Ω | 420mA | ||
FASDR0504-222K0R1 | 2200.00uH | 15.0000Ω | 100mA | ||
FASDR0504-270M0R97 | 27.00uH | 0.2000Ω | 970mA | ||
FASDR0504-330K0R88 | 33.00uH | 0.2300Ω | 880mA | ||
FASDR0504-331K0R38 | 330.00uH | 1.8000Ω | 380mA | ||
FASDR0504-470K0R72 | 47.00uH | 0.3500Ω | 720mA | ||
FASDR0504-471K0R25 | 470.00uH | 3.0000Ω | 250mA | ||
FASDR0504-561K0R22 | 560.00uH | 3.5000Ω | 220mA | ||
FASDR0504-680K0R61 | 68.00uH | 0.4600Ω | 610mA | ||
FASDR0504-681K0R3 | 680.00uH | 4.8000Ω | 300mA | ||
FASDR0504-681K0R19 | 680.00uH | 5.1000Ω | 190mA | ||
FASDR0504-820K0R58 | 82.00uH | 0.6000Ω | 580mA | ||
FASDR0504-821K0R18 | 820.00uH | 5.5000Ω | 180mA | ||
FASDR0703 | 1.00-1000uH | 0.0180-4.7600Ω | 210-1640mA | - | |
FASDR0703-1R0M1R64 | 1.00uH | 0.0180Ω | 1640mA | ||
FASDR0703-1R5M1R6 | 1.50uH | 0.0200Ω | 1600mA | ||
FASDR0703-2R2M1R6 | 2.20uH | 0.0230Ω | 1600mA | ||
FASDR0703-3R3M1R59 | 3.30uH | 0.0250Ω | 1590mA | ||
FASDR0703-4R7M1R54 | 4.70uH | 0.0390Ω | 1540mA | ||
FASDR0703-6R8M1R49 | 6.80uH | 0.0400Ω | 1490mA | ||
FASDR0703-8R2M1R46 | 8.20uH | 0.0800Ω | 1460mA | ||
FASDR0703-100M1R44 | 10.00uH | 0.0800Ω | 1440mA | ||
FASDR0703-101K0R51 | 100.00uH | 0.4800Ω | 510mA | ||
FASDR0703-102K0R2 | 1000.00uH | 4.7600Ω | 200mA | ||
FASDR0703-120M1R39 | 12.00uH | 0.0900Ω | 1390mA | ||
FASDR0703-121K0R49 | 120.00uH | 0.5400Ω | 490mA | ||
FASDR0703-150M1R24 | 15.00uH | 0.1100Ω | 1240mA | ||
FASDR0703-151K0R4 | 150.00uH | 0.7600Ω | 400mA | ||
FASDR0703-180M1R12 | 18.00uH | 0.1100Ω | 1120mA | ||
FASDR0703-181K0R36 | 180.00uH | 1.0200Ω | 360mA | ||
FASDR0703-220M1R07 | 22.00uH | 0.1300Ω | 1070mA | ||
FASDR0703-221K0R31 | 220.00uH | 1.2000Ω | 310mA | ||
FASDR0703-270M0R94 | 27.00uH | 0.1500Ω | 940mA | ||
FASDR0703-271K0R29 | 270.00uH | 1.3100Ω | 290mA | ||
FASDR0703-330K0R85 | 33.00uH | 0.1700Ω | 850mA | ||
FASDR0703-331K0R28 | 330.00uH | 1.5000Ω | 280mA | ||
FASDR0703-390K0R74 | 39.00uH | 0.2200Ω | 740mA | ||
FASDR0703-391K0R27 | 390.00uH | 1.7000Ω | 270mA | ||
FASDR0703-470K0R68 | 47.00uH | 0.2500Ω | 680mA | ||
FASDR0703-471K0R26 | 470.00uH | 2.1000Ω | 260mA | ||
FASDR0703-560K0R64 | 56.00uH | 0.2800Ω | 640mA | ||
FASDR0703-561K0R25 | 560.00uH | 2.6600Ω | 250mA | ||
FASDR0703-680K0R59 | 68.00uH | 0.3300Ω | 590mA | ||
FASDR0703-681K0R23 | 680.00uH | 3.0000Ω | 230mA | ||
FASDR0703-820K0R54 | 82.00uH | 0.4100Ω | 540mA | ||
FASDR0703-821K0R21 | 820.00uH | 3.6300Ω | 210mA | ||
FASDR0705 | 1.00-2200uH | 0.0100-11.0000Ω | 110-5500mA | - | |
FASDR0705-1R0M5R5 | 1.00uH | 0.0150Ω | 5500mA | ||
FASDR0705-1R5M5R0 | 1.50uH | 0.0180Ω | 5000mA | ||
FASDR0705-2R2M4R5 | 2.20uH | 0.0220Ω | 4500mA | ||
FASDR0705-3R3M4R0 | 3.30uH | 0.0300Ω | 4000mA | ||
FASDR0705-4R7M3R6 | 4.70uH | 0.0350Ω | 3600mA | ||
FASDR0705-5R6M3R3 | 5.60uH | 0.0380Ω | 3300mA | ||
FASDR0705-6R8M3R1 | 6.80uH | 0.0400Ω | 3100mA | ||
FASDR0705-8R2M2R7 | 8.20uH | 0.0500Ω | 2700mA | ||
FASDR0705-100M2R3 | 10.00uH | 0.0700Ω | 2300mA | ||
FASDR0705-101K | 100.00uH | 0.4300Ω | 720mA | ||
FASDR0705-102K0R2 | 1000.00uH | 3.5000Ω | 200mA | ||
FASDR0705-120M2R0 | 12.00uH | 0.0800Ω | 2000mA | ||
FASDR0705-121K0R66 | 120.00uH | 0.4700Ω | 660mA | ||
FASDR0705-150M1R8 | 15.00uH | 0.0900Ω | 1800mA | ||
FASDR0705-151K0R58 | 150.00uH | 0.6400Ω | 580mA | ||
FASDR0705-152K0R23 | 1.50uH | 7.5000Ω | 230mA | ||
FASDR0705-180M1R6 | 18.00uH | 0.1000Ω | 1600mA | ||
FASDR0705-181K0R51 | 180.00uH | 0.7100Ω | 510mA | ||
FASDR0705-220M1R5 | 22.00uH | 0.1100Ω | 1500mA | ||
FASDR0705-221K | 220.00uH | 0.9600Ω | 490mA | ||
FASDR0705-222K0R15 | 2200.00uH | 11.0000Ω | 150mA | ||
FASDR0705-270M1R3 | 27.00uH | 0.1200Ω | 1300mA | ||
FASDR0705-271K0R45 | 270.00uH | 1.1000Ω | 450mA | ||
FASDR0705-330K1R2 | 33.00uH | 0.1300Ω | 1200mA | ||
FASDR0705-331K0R4 | 330.00uH | 1.2600Ω | 400mA | ||
FASDR0705-390K1R1 | 39.00uH | 0.1600Ω | 1100mA | ||
FASDR0705-470K | 47.00uH | 0.1800Ω | 1100mA | ||
FASDR0705-471K0R33 | 470.00uH | 1.8900Ω | 330mA | ||
FASDR0705-560K0R94 | 56.00uH | 0.2400Ω | 940mA | ||
FASDR0705-561K0R32 | 560.00uH | 2.0000Ω | 320mA | ||
FASDR0705-680K0R85 | 68.00uH | 0.2800Ω | 850mA | ||
FASDR0705-681K0R26 | 680.00uH | 2.5600Ω | 260mA | ||
FASDR0705-820K0R78 | 82.00uH | 0.3700Ω | 780mA | ||
FASDR0705-821K0R22 | 820.00uH | 3.2500Ω | 220mA | ||
FASDR1004 | 1.00-560uH | 0.0120-1.9000Ω | 320-8700mA | - | |
FASDR1004-1R0M8R7 | 1.00uH | 0.0120Ω | 8700mA | ||
FASDR1004-1R5M7R48 | 1.50uH | 0.0160Ω | 7480mA | ||
FASDR1004-1R8M6R8 | 1.80uH | 0.0180Ω | 6800mA | ||
FASDR1004-2R2M5R4 | 2.20uH | 0.0200Ω | 5400mA | ||
FASDR1004-2R7M3R2 | 2.70uH | 0.0240Ω | 3200mA | ||
FASDR1004-3R3M2R85 | 3.30uH | 0.0280Ω | 2850mA | ||
FASDR1004-3R9M2R8 | 3.90uH | 0.0300Ω | 2800mA | ||
FASDR1004-4R7M2R75 | 4.70uH | 0.0380Ω | 2750mA | ||
FASDR1004-5R6M2R7 | 5.60uH | 0.0400Ω | 2700mA | ||
FASDR1004-6R8M2R65 | 6.80uH | 0.0420Ω | 2650mA | ||
FASDR1004-8R2M2R6 | 8.20uH | 0.0480Ω | 2600mA | ||
FASDR1004-100M2R38 | 10.00uH | 0.0530Ω | 2380mA | ||
FASDR1004-101K0R74 | 100.00uH | 0.3500Ω | 740mA | ||
FASDR1004-120M2R13 | 12.00uH | 0.0610Ω | 2130mA | ||
FASDR1004-121K0R69 | 120.00uH | 0.4000Ω | 690mA | ||
FASDR1004-150M1R87 | 15.00uH | 0.0700Ω | 1870mA | ||
FASDR1004-151K0R61 | 150.00uH | 0.5500Ω | 610mA | ||
FASDR1004-180M1R73 | 18.00uH | 0.0810Ω | 1730mA | ||
FASDR1004-181K0R56 | 180.00uH | 0.6200Ω | 560mA | ||
FASDR1004-220M1R6 | 22.00uH | 0.0900Ω | 1600mA | ||
FASDR1004-221K0R53 | 220.00uH | 0.7200Ω | 530mA | ||
FASDR1004-270M1R44 | 27.00uH | 0.1000Ω | 1440mA | ||
FASDR1004-271K0R45 | 270.00uH | 0.9500Ω | 450mA | ||
FASDR1004-330K1R26 | 33.00uH | 0.1200Ω | 1260mA | ||
FASDR1004-331K0R42 | 330.00uH | 1.1000Ω | 420mA | ||
FASDR1004-390K1R2 | 39.00uH | 0.1500Ω | 1200mA | ||
FASDR1004-391K0R38 | 390.00uH | 1.2500Ω | 380mA | ||
FASDR1004-470K1R1 | 47.00uH | 0.1700Ω | 1100mA | ||
FASDR1004-471K0R35 | 470.00uH | 1.5300Ω | 350mA | ||
FASDR1004-560K1R01 | 56.00uH | 0.2000Ω | 1010mA | ||
FASDR1004-561K0R32 | 560.00uH | 1.9000Ω | 320mA | ||
FASDR1004-680K0R91 | 68.00uH | 0.2200Ω | 910mA | ||
FASDR1004-820K0R85 | 82.00uH | 0.2500Ω | 850mA | ||
FASDR1005 | 10.00-820.00uH | 0.0600-2.5500Ω | 240-2600mA | - | |
FASDR1005-100M2R6 | 10.00uH | 0.0600Ω | 2600mA | ||
FASDR1005-101K0R97 | 100.00uH | 0.3500Ω | 970mA | ||
FASDR1005-120M2R45 | 12.00uH | 0.0700Ω | 2450mA | ||
FASDR1005-121K0R89 | 120.00uH | 0.4000Ω | 890mA | ||
FASDR1005-150M2R27 | 15.00uH | 0.0800Ω | 2270mA | ||
FASDR1005-151K0R78 | 150.00uH | 0.4700Ω | 780mA | ||
FASDR1005-180M2R15 | 18.00uH | 0.0900Ω | 2150mA | ||
FASDR1005-181K0R72 | 180.00uH | 0.6300Ω | 720mA | ||
FASDR1005-220M | 22.00uH | 0.1000Ω | 1950mA | ||
FASDR1005-221K | 220.00uH | 0.7300Ω | 660mA | - | |
FASDR1005-270M1R76 | 27.00uH | 0.1100Ω | 1760mA | ||
FASDR1005-330K | 33.00uH | 0.1200Ω | 1500mA | ||
FASDR1005-331K0R52 | 330.00uH | 1.1500Ω | 520mA | ||
FASDR1005-390K1R37 | 39.00uH | 0.1400Ω | 1370mA | ||
FASDR1005-391K0R48 | 390.00uH | 1.3000Ω | 480mA | ||
FASDR1005-470K | 47.00uH | 0.1700Ω | 1280mA | ||
FASDR1005-470M1R28 | 47.00uH | 0.1700Ω | 1280mA | - | |
FASDR1005-471K0R42 | 470.00uH | 1.4800Ω | 420mA | ||
FASDR1005-560K1R17 | 56.00uH | 0.1900Ω | 1170mA | ||
FASDR1005-561K0R33 | 560.00uH | 1.9000Ω | 330mA | ||
FASDR1005-680K | 68.00uH | 0.2200Ω | 1110mA | ||
FASDR1006 | 1.00-1000.00uH | 0.0080-3.0000Ω | 460-9500mA | - | |
FASDRH0703 | 1-1000uH | 0.072-6.54Ω | 160-7790mA | - | |
FASDRH0703-1R0N7R79 | 1.00uH | 0.0200Ω | 7790mA | - | |
FASDRH0703-2R2N4R5 | 2.20uH | 0.0260Ω | 4500mA | ||
FASDRH0703-3R3N3R0 | 3.30uH | 0.0400Ω | 3000mA | ||
FASDRH0703-4R7N2R7 | 4.70uH | 0.0430Ω | 2700mA | ||
FASDRH0703-6R8N2R0 | 6.80uH | 0.0600Ω | 2000mA | ||
FASDRH0703-100M1R68 | 10.00uH | 0.0720Ω | 1680mA | ||
FASDRH0703-101M0R5 | 100.00uH | 0.7900Ω | 500mA | ||
FASDRH0703-102M0R16 | 1000.00uH | 9.4400Ω | 160mA | ||
FASDRH0703-120M1R52 | 12.00uH | 0.0980Ω | 1520mA | ||
FASDRH0703-121M0R49 | 120.00uH | 0.8900Ω | 490mA | ||
FASDRH0703-150M1R33 | 15.00uH | 0.1300Ω | 1330mA | ||
FASDRH0703-151M0R43 | 150.00uH | 1.2700Ω | 430mA | ||
FASDRH0703-180M1R2 | 18.00uH | 0.1400Ω | 1200mA | ||
FASDRH0703-181M0R39 | 180.00uH | 1.4500Ω | 390mA | ||
FASDRH0703-220M1R07 | 22.00uH | 0.1900Ω | 1070mA | ||
FASDRH0703-221M0R35 | 220.00uH | 1.6500Ω | 350mA | ||
FASDRH0703-270M0R96 | 27.00uH | 0.2100Ω | 960mA | ||
FASDRH0703-271M0R32 | 270.00uH | 2.3100Ω | 320mA | ||
FASDRH0703-330M0R91 | 33.00uH | 0.2400Ω | 910mA | ||
FASDRH0703-331M0R28 | 330.00uH | 2.6200Ω | 280mA | ||
FASDRH0703-390M0R8 | 39.00uH | 0.3200Ω | 800mA | ||
FASDRH0703-391M0R26 | 390.00uH | 2.9400Ω | 260mA | ||
FASDRH0703-470M0R76 | 47.00uH | 0.3600Ω | 760mA | ||
FASDRH0703-471M0R24 | 470.00uH | 4.1800Ω | 240mA | ||
FASDRH0703-560M0R68 | 56.00uH | 0.4700Ω | 680mA | ||
FASDRH0703-561M0R22 | 560.00uH | 4.6700Ω | 220mA | ||
FASDRH0703-680M0R61 | 68.00uH | 0.5200Ω | 610mA | ||
FASDRH0703-681M0R19 | 680.00uH | 5.7300Ω | 190mA | ||
FASDRH0703-820M0R57 | 82.00uH | 0.6900Ω | 570mA | ||
FASDRH0703-821M0R18 | 820.00uH | 6.5400Ω | 180mA | ||
FASDRH0704 | 1.00-1000.00uH | 0.0180-6.0000Ω | 180-8500mA | - | |
FASDRH0704-1R0N8R5 | 1.00uH | 0.0180Ω | 8500mA | ||
FASDRH0704-2R2N5R0 | 2.20uH | 0.0300Ω | 5000mA | ||
FASDRH0704-3R3N3R5 | 3.30uH | 0.0350Ω | 3500mA | ||
FASDRH0704-4R7N3R0 | 4.70uH | 0.0400Ω | 3000mA | ||
FASDRH0704-4R7N4R0 | 4.70uH | 0.0400Ω | 4000mA | ||
FASDRH0704-6R8N2R5 | 6.80uH | 0.0450Ω | 2500mA | ||
FASDRH0704-100M1R84 | 10.00uH | 0.0490Ω | 1840mA | ||
FASDRH0704-101M0R6 | 100.00uH | 0.6100Ω | 600mA | ||
FASDRH0704-102M0R18 | 1000.00uH | 6.000Ω | 180mA | ||
FASDRH0704-120M1R71 | 12.00uH | 0.0580Ω | 1710mA | ||
FASDRH0704-121M0R52 | 120.00uH | 0.6600Ω | 520mA | ||
FASDRH0704-150M1R47 | 15.00uH | 0.0810Ω | 1470mA | ||
FASDRH0704-151M0R46 | 150.00uH | 0.8800Ω | 460mA | ||
FASDRH0704-180M1R31 | 18.00uH | 0.0910Ω | 1310mA | ||
FASDRH0704-181M0R42 | 180.00uH | 0.9800Ω | 420mA | ||
FASDRH0704-220M1R23 | 22.00uH | 0.1100Ω | 1230mA | ||
FASDRH0704-220M2R0 | 22.00uH | 0.1340Ω | 2000mA | ||
FASDRH0704-221M0R36 | 220.00uH | 1.1700Ω | 360mA | ||
FASDRH0704-270M1R12 | 27.00uH | 0.1500Ω | 1120mA | ||
FASDRH0704-271M0R34 | 270.00uH | 1.6400Ω | 340mA | ||
FASDRH0704-330M0R96 | 33.00uH | 0.1700Ω | 960mA | ||
FASDRH0704-331M0R32 | 330.00uH | 1.8600Ω | 320mA | ||
FASDRH0704-390M0R91 | 39.00uH | 0.2300Ω | 910mA | ||
FASDRH0704-391M0R29 | 390.00uH | 2.8500Ω | 290mA | ||
FASDRH0704-470M0R88 | 47.00uH | 0.2600Ω | 880mA | ||
FASDRH0704-471M0R26 | 470.00uH | 3.0100Ω | 260mA | ||
FASDRH0704-560M0R75 | 56.00uH | 0.3500Ω | 750mA | ||
FASDRH0704-561M0R23 | 560.00uH | 3.6200Ω | 230mA | ||
FASDRH0704-680M | 68.00uH | 0.3800Ω | 690mA | ||
FASDRH0704-681M0R22 | 680.00uH | 4.6300Ω | 220mA | ||
FASDRH0704-820M0R61 | 82.00uH | 0.4300Ω | 610mA | ||
FASDRH0704-821M0R2 | 820.00uH | 5.2000Ω | 200mA | ||
FASDRH0704PC | 4.70-22.00uH | 0.0700-0.2200Ω | 1230-3200mA | - | - |
FASDRH0704CP-4R7M3R2 | 4.70uH | 0.0700Ω | 3200mA | ||
FASDRH0704PC-220M | 22.00uH | 0.2200Ω | 1230mA | ||
FASDRH1204 | 1-330uH | 0.008-0.990Ω | 500-12000mA | - | |
FASDRH1204-1R0N12R0 | 1.00uH | 0.0080Ω | 12000mA | ||
FASDRH1204-2R2N9R1 | 2.20uH | 0.0120Ω | 9100mA | ||
FASDRH1204-3R3N8R0 | 3.30uH | 0.0150Ω | 8000mA | ||
FASDRH1204-3R9N6R5 | 3.90uH | 0.0170Ω | 6500mA | ||
FASDRH1204-4R7N5R7 | 4.70uH | 0.0180Ω | 5700mA | ||
FASDRH1204-6R8N4R9 | 6.80uH | 0.0230Ω | 4900mA | ||
FASDRH1204-100M4R5 | 10.00uH | 0.0400Ω | 4500mA | ||
FASDRH1204-101M1R2 | 100.00uH | 0.3100Ω | 1200mA | ||
FASDRH1204-120M4R0 | 12.00uH | 0.0380Ω | 4000mA | ||
FASDRH1204-121M1R1 | 120.00uH | 0.3800Ω | 1100mA | ||
FASDRH1204-150M3R2 | 15.00uH | 0.0500Ω | 3200mA | ||
FASDRH1204-151M0R95 | 150.00uH | 0.5300Ω | 950mA | ||
FASDRH1204-180M3R1 | 18.00uH | 0.0570Ω | 3100mA | ||
FASDRH1204-181M0R85 | 180.00uH | 0.6200Ω | 850mA | ||
FASDRH1204-220M2R9 | 22.00uH | 0.0660Ω | 2900mA | ||
FASDRH1204-221M0R8 | 220.00uH | 0.7000Ω | 800mA | ||
FASDRH1204-270M2R8 | 27.00uH | 0.0800Ω | 2800mA | ||
FASDRH1204-271M0R6 | 270.00uH | 0.8800Ω | 600mA | ||
FASDRH1204-330M2R7 | 33.00uH | 0.0970Ω | 2700mA | ||
FASDRH1204-331M0R5 | 330.00uH | 0.9900Ω | 500mA | ||
FASDRH1204-390M2R1 | 39.00uH | 0.1300Ω | 2100mA | ||
FASDRH1204-470M1R9 | 47.00uH | 0.1500Ω | 1900mA | ||
FASDRH1204-560M1R8 | 56.00uH | 0.1900Ω | 1800mA | ||
FASDRH1204-680M1R5 | 68.00uH | 0.2200Ω | 1500mA | ||
FASDRH1204-820M1R3 | 82.00uH | 0.2600Ω | 1300mA | ||
FASDRH1205 | 1.00-1000.00uH | 0.0070-1.5300Ω | 400-15200mA | - | |
FASDRH1205-1R0N15R2 | 1.00uH | 0.0070Ω | 15200mA | ||
FASDRH1205-3R3N8R0 | 3.30uH | 0.0150Ω | 8000mA | ||
FASDRH1205-4R7N7R6 | 4.70uH | 0.0180Ω | 7600mA | ||
FASDRH1205-6R8N5R5 | 6.80uH | 0.0230Ω | 5500mA | ||
FASDRH1205-8R2N5R0 | 8.20uH | 0.0240Ω | 5000mA | ||
FASDRH1205-100M4R0 | 10.00uH | 0.0250Ω | 4000mA | ||
FASDRH1205-101M1R3 | 100.00uH | 0.1600Ω | 1300mA | ||
FASDRH1205-102M0R4 | 1000.00uH | 1.5300Ω | 400mA | ||
FASDRH1205-120M3R5 | 12.00uH | 0.0270Ω | 3500mA | ||
FASDRH1205-121M1R1 | 120.00uH | 0.1700Ω | 1100mA | ||
FASDRH1205-150M3R3 | 15.00uH | 0.0300Ω | 3300mA | ||
FASDRH1205-151M1R0 | 150.00uH | 0.2300Ω | 1000mA | ||
FASDRH1205-180M3R0 | 18.00uH | 0.0340Ω | 3000mA | ||
FASDRH1205-181M0R9 | 180.00uH | 0.2900Ω | 900mA | ||
FASDRH1205-220M2R8 | 22.00uH | 0.0360Ω | 2800mA | ||
FASDRH1205-221M0R8 | 220.00uH | 0.4000Ω | 800mA | ||
FASDRH1205-270M2R3 | 27.00uH | 0.0510Ω | 2300mA | ||
FASDRH1205-271M0R75 | 270.00uH | 0.4600Ω | 750mA | ||
FASDRH1205-330M2R1 | 33.00uH | 0.0570Ω | 2100mA | ||
FASDRH1205-331M0R68 | 330.00uH | 0.5100Ω | 680mA | ||
FASDRH1205-390M2R0 | 39.00uH | 0.0680Ω | 2000mA | ||
FASDRH1205-391M0R65 | 390.00uH | 0.6900Ω | 650mA | ||
FASDRH1205-470M1R8 | 47.00uH | 0.0750Ω | 1800mA | ||
FASDRH1205-471M0R58 | 470.00uH | 0.7700Ω | 580mA | ||
FASDRH1205-560M1R7 | 56.00uH | 0.1100Ω | 1700mA | ||
FASDRH1205-561M0R54 | 560.00uH | 0.8600Ω | 540mA | ||
FASDRH1205-680M1R5 | 68.00uH | 0.1200Ω | 1500mA | ||
FASDRH1205-681M0R48 | 680.00uH | 1.2000Ω | 480mA | ||
FASDRH1205-820M1R4 | 82.00uH | 0.1400Ω | 1400mA | ||
FASDRH1205-821M0R43 | 820.00uH | 1.3400Ω | 430mA | ||
FASDRH1207 | 2.2-1000uH | 0.012-1.640Ω | 550-11500mA | - | |
FASDRH1207-2R2N11R5 | 2.20uH | 0.0120Ω | 11500mA | ||
FASDRH1207-3R3N8R8 | 3.30uH | 0.0140Ω | 8800mA | ||
FASDRH1207-4R7N6R8 | 4.70uH | 0.0160Ω | 6800mA | ||
FASDRH1207-6R8N6R2 | 6.80uH | 0.0200Ω | 6200mA | ||
FASDRH1207-100M5R4 | 11.00uH | 0.0220Ω | 5400mA | ||
FASDRH1207-101M | 100.00uH | 0.2200Ω | 1700mA | ||
FASDRH1207-102M0R55 | 1000.00uH | 1.8200Ω | 550mA | ||
FASDRH1207-120M4R9 | 12.00uH | 0.0240Ω | 4900mA | ||
FASDRH1207-121M1R6 | 120.00uH | 0.2500Ω | 1600mA | ||
FASDRH1207-150M4R5 | 15.00uH | 0.0270Ω | 4500mA | ||
FASDRH1207-151M1R42 | 150.00uH | 0.2800Ω | 1420mA | ||
FASDRH1207-180M3R9 | 18.00uH | 0.0390Ω | 3900mA | ||
FASDRH1207-181M1R3 | 180.00uH | 0.3500Ω | 1300mA | ||
FASDRH1207-220M3R6 | 22.00uH | 0.0430Ω | 3600mA | ||
FASDRH1207-221M | 220.00uH | 0.3900Ω | 1160mA | ||
FASDRH1207-270M3R4 | 27.00uH | 0.0460Ω | 3400mA | ||
FASDRH1207-271M1R06 | 270.00uH | 0.5600Ω | 1060mA | ||
FASDRH1207-330M3R0 | 33.00uH | 0.0650Ω | 3000mA | ||
FASDRH1207-331M0R95 | 330.00uH | 0.6400Ω | 950mA | ||
FASDRH1207-390M2R75 | 39.00uH | 0.0730Ω | 2750mA | ||
FASDRH1207-391M0R88 | 390.00uH | 0.7000Ω | 880mA | ||
FASDRH1207-470M | 47.00uH | 0.1000Ω | 2500mA | ||
FASDRH1207-471M0R79 | 470.00uH | 0.9800Ω | 790mA | ||
FASDRH1207-560M2R35 | 56.00uH | 0.1100Ω | 2350mA | - | |
FASDRH1207-561M0R73 | 560.00uH | 1.0700Ω | 730mA | ||
FASDRH1207-680M2R1 | 68.00uH | 0.1400Ω | 2100mA | ||
FASDRH1207-681M0R67 | 680.00uH | 1.4600Ω | 670mA | ||
FASDRH1207-820M1R95 | 82.00uH | 0.1600Ω | 1950mA | ||
FASDRH1207-821M0R6 | 820.00uH | 1.6400Ω | 600mA | ||
FASDRH1207P | 22-22000uH | 0.0430-42Ω | 210-4500mA | - | - |
FASDRH1207P-220M3R7 | 22.00uH | 0.0430Ω | 3700mA | ||
FASDRH1207P-223K | 22000uH | 42.0000Ω | 210mA | ||
FASDRH1207P-390M | 39uH | 0.0770Ω | 4500mA | ||
FASDRH1209 | 1.00-3300uH | 0.0060-4.6Ω | 370-19900mA | - | - |
FASDRH1209-1R0N19R9 | 1.00uH | 0.0060Ω | 19900mA | ||
FASDRH1209-1R8N13R4 | 1.80uH | 0.0070Ω | 13400mA | ||
FASDRH1209-4R7N11R0 | 4.70uH | 0.0110Ω | 11000mA | ||
FASDRH1209-6R8N10R0 | 6.80uH | 0.0120Ω | 10000mA | ||
FASDRH1209-8R2N8R5 | 8.20uH | 0.0150Ω | 8500mA | ||
FASDRH1209-100M8R2 | 10.00uH | 0.0170Ω | 8200mA | ||
FASDRH1209-101M2R31 | 100.00uH | 0.1300Ω | 2310mA | ||
FASDRH1209-102M0R7 | 1000.00uH | 1.2200Ω | 700mA | ||
FASDRH1209-120M7R04 | 12.00uH | 0.0190Ω | 7040mA | ||
FASDRH1209-121M2R05 | 120.00uH | 0.1500Ω | 2050mA | ||
FASDRH1209-122M0R64 | 1200.00uH | 1.3300Ω | 640mA | ||
FASDRH1209-150M5R22 | 15.00uH | 0.0250Ω | 5220mA | ||
FASDRH1209-151M1R8 | 150.00uH | 0.1700Ω | 1800mA | ||
FASDRH1209-152M0R56 | 1500.00uH | 1.9900Ω | 560mA | ||
FASDRH1209-180M5R15 | 18.00uH | 0.0270Ω | 5150mA | ||
FASDRH1209-181M1R66 | 180.00uH | 0.1900Ω | 1660mA | ||
FASDRH1209-182M0R48 | 1800.00uH | 2.1800Ω | 480mA | ||
FASDRH1209-220M5R12 | 22.00uH | 0.0290Ω | 5120mA | ||
FASDRH1209-221M | 220.00uH | 0.3000Ω | 2000mA | ||
FASDRH1209-221M1R64 | 220.00uH | 0.2500Ω | 1640mA | ||
FASDRH1209-221MZ | 220.00uH | 0.3000Ω | 2200mA | ||
FASDRH1209-222M0R43 | 2200.00uH | 2.5800Ω | 430mA | ||
FASDRH1209-270M4R5 | 27.00uH | 0.0450Ω | 4500mA | ||
FASDRH1209-271M1R55 | 270.00uH | 0.3000Ω | 1550mA | ||
FASDRH1209-330M4R25 | 33.00uH | 0.0530Ω | 4250mA | ||
FASDRH1209-331M1R28 | 330.00uH | 0.3900Ω | 1280mA | ||
FASDRH1209-332M0R37 | 3300.00uH | 4.6000Ω | 370mA | ||
FASDRH1209-390M4R0 | 39.00uH | 0.0560Ω | 4000mA | ||
FASDRH1209-391M1R1 | 390.00uH | 0.5000Ω | 1100mA | ||
FASDRH1209-470M3R6 | 47.00uH | 0.0630Ω | 3600mA | ||
FASDRH1209-471M1R06 | 470.00uH | 0.5500Ω | 1060mA | ||
FASDRH1209-560M2R85 | 56.00uH | 0.0680Ω | 2850mA | ||
FASDRH1209-561M1R01 | 560.00uH | 0.6500Ω | 1010mA | ||
FASDRH1209-680M2R78 | 68.00uH | 0.0930Ω | 2760mA | ||
FASDRH1209-681M0R83 | 680.00uH | 0.7300Ω | 830mA | ||
FASDRH1209-820M2R62 | 82.00uH | 0.0990Ω | 2620mA | ||
FASDRH1209-821M0R81 | 820.00uH | 0.8200Ω | 810mA | ||
FASDRH6025 | 2.20-100.00uH | 0.0320-0.6500Ω | 330-1700mA | - | |
FASDRH6025-2R2N1R7 | 2.20uH | 0.0320Ω | 1700mA | ||
FASDRH6025-4R7N1R5 | 4.70uH | 0.0397Ω | 1500mA | ||
FASDRH6025-5R6N1R4 | 5.60uH | 0.0530Ω | 1400mA | ||
FASDRH6025-6R8N1R3 | 6.80uH | 0.0574Ω | 1300mA | ||
FASDRH6025-100M1R0 | 10.00uH | 0.0745Ω | 1000mA | ||
FASDRH6025-101M0R33 | 100.00uH | 0.6500Ω | 330mA | ||
FASDRH6025-150M0R88 | 15.00uH | 0.1100Ω | 880mA | ||
FASDRH6025-220M0R73 | 22.00uH | 0.1580Ω | 730mA | ||
FASDRH6025-330M0R59 | 33.00uH | 0.2340Ω | 590mA | ||
FASDRH6025-470M0R48 | 47.00uH | 0.3120Ω | 480mA | ||
FASDRH6025-680M0R42 | 68.00uH | 0.4810Ω | 420mA | ||
FASDRH6028 | 4.70-220.00uH | 0.0369-1.2740Ω | 260-1600mA | - | |
FASDRH6028-4R7N1R6 | 4.70uH | 0.0369Ω | 1600mA | ||
FASDRH6028-6R8N1R5 | 6.80uH | 0.0460Ω | 1500mA | ||
FASDRH6028-100M1R3 | 10.00uH | 0.0691Ω | 1300mA | ||
FASDRH6028-101M0R42 | 100.00uH | 0.5590Ω | 420mA | ||
FASDRH6028-150M1R0 | 15.00uH | 0.0968Ω | 1000mA | ||
FASDRH6028-151M0R34 | 150.00uH | 0.8450Ω | 340mA | ||
FASDRH6028-220M0R77 | 22.00uH | 0.1350Ω | 770mA | ||
FASDRH6028-221M0R26 | 220.00uH | 1.2740Ω | 260mA | ||
FASDRH6028-330M0R69 | 33.00uH | 0.1920Ω | 690mA | ||
FASDRH6028-470M0R59 | 47.00uH | 0.2730Ω | 590mA | ||
FASDRH6028-680M0R5 | 68.00uH | 0.3770Ω | 500mA | ||
FASDRH7032 | 3.3-680uH | 0.0293-4.73Ω | 160-1900mA | - | |
FASDRH7032-3R3N1R9 | 3.30uH | 0.0293Ω | 1900mA | ||
FASDRH7032-4R7N1R7 | 4..70uH | 0.0390Ω | 1700mA | ||
FASDRH7032-6R8N1R6 | 6.80uH | 0.0492Ω | 1600mA | ||
FASDRH7032-100M1R4 | 10.00uH | 0.0636Ω | 1400mA | ||
FASDRH7032-101M0R45 | 100.00uH | 0.5400Ω | 450mA | ||
FASDRH7032-102M0R13 | 1000.00uH | 4.7300Ω | 1300mA | ||
FASDRH7032-150M1R1 | 15.00uH | 0.0900Ω | 1100mA | ||
FASDRH7032-151M0R37 | 150.00uH | 0.7800Ω | 370mA | ||
FASDRH7032-220M0R96 | 22.00uH | 0.1320Ω | 960mA | ||
FASDRH7032-221M0R29 | 220.00uH | 1.2600Ω | 290mA | ||
FASDRH7032-330M0R75 | 33.00uH | 0.1920Ω | 750mA | ||
FASDRH7032-331M0R22 | 330.00uH | 2.0040Ω | 220mA | ||
FASDRH7032-470M0R67 | 47.00uH | 0.2880Ω | 670mA | ||
FASDRH7032-471M0R2 | 470.00uH | 2.4600Ω | 200mA | ||
FASDRH7032-680M0R59 | 68.00uH | 0.3720Ω | 590mA | ||
FASDRH7032-681M0R16 | 680.00uH | 3.7800Ω | 160mA | ||
FASDRH7045 | 1-1000uH | 0.018-2.736Ω | 140-3500mA | - | |
FASDRH7045-1R0N3R5 | 1.00uH | 0.0180Ω | 3500mA | ||
FASDRH7045-2R2N3R0 | 2.20uH | 0.0228Ω | 3000mA | ||
FASDRH7045-3R3N2R5 | 3.30uH | 0.0240Ω | 2500mA | ||
FASDRH7045-4R7N2R0 | 4.70uH | 0.0360Ω | 2000mA | ||
FASDRH7045-6R8N1R7 | 6.80uH | 0.0468Ω | 1700mA | ||
FASDRH7045-100M1R3 | 10.00uH | 0.0504Ω | 1300mA | ||
FASDRH7045-101M0R5 | 100.00uH | 0.3000Ω | 500mA | ||
FASDRH7045-102M0R14 | 1000.00uH | 2.7360Ω | 140mA | ||
FASDRH7045-150M1R1 | 15.00uH | 0.0624Ω | 1100mA | ||
FASDRH7045-151M0R4 | 150.00uH | 0.4080Ω | 400mA | ||
FASDRH7045-220M0R9 | 22.00uH | 0.0732Ω | 900mA | ||
FASDRH7045-221M0R33 | 220.00uH | 0.6240Ω | 330mA | ||
FASDRH7045-330M0R82 | 33.00uH | 0.1160Ω | 820mA | ||
FASDRH7045-331M0R25 | 330.00uH | 0.8880Ω | 250mA | ||
FASDRH7045-470M0R75 | 47.00uH | 0.1500Ω | 750mA | ||
FASDRH7045-471M0R22 | 470.00uH | 1.2600Ω | 220mA | ||
FASDRH7045-680M0R6 | 68.00uH | 0.2100Ω | 600mA | ||
FASDRH7045-681M0R2 | 680.00uH | 1.7760Ω | 200mA | ||
FASDRH7055 | 1.5-100uH | 0.0226-0.381Ω | 900-6200mA | - | - |
FASDRH7055-1R5N6R2 | 1.50uH | 0.0226Ω | 6200mA | ||
FASDRH7055-2R2N5R3 | 2.20uH | 0.0282Ω | 5300mA | ||
FASDRH7055-3R3N4R3 | 3.30uH | 0.0312Ω | 4300mA | ||
FASDRH7055-3R9N4R0 | 3.90uH | 0.0338Ω | 4000mA | ||
FASDRH7055-4R7N3R6 | 4.70uH | 0.0364Ω | 3600mA | ||
FASDRH7055-6R8N3R0 | 6.80uH | 0.0442Ω | 3000mA | ||
FASDRH7055-100M2R6 | 10.00uH | 0.0508Ω | 2600mA | ||
FASDRH7055-101M0R8 | 100.00uH | 0.3810Ω | 1800mA | ||
FASDRH7055-150M2R1 | 15.00uH | 0.0660Ω | 2100mA | ||
FASDRH7055-180M1R9 | 18.00uH | 0.0740Ω | 1900mA | ||
FASDRH7055-220M1R7 | 22.00uH | 0.0836Ω | 1700mA | ||
FASDRH7055-330M1R4 | 33.00uH | 0.1140Ω | 1400mA | ||
FASDRH7055-470M1R2 | 47.00uH | 0.1690Ω | 1200mA | ||
FASDRH7055-680M0R9 | 68.00uH | 0.2600Ω | 900mA | ||
FASDRH103 | 1.50-150uH | 0.0110-0.8710Ω | 840-8000mA | - | |
FASDRH103-1R5N8R0 | 1.50uH | 0.0110Ω | 8000mA | ||
FASDRH103-2R2N6R7 | 2.20uH | 0.0170Ω | 6700mA | ||
FASDRH103-3R3N5R56 | 3.30uH | 0.0210Ω | 5560mA | ||
FASDRH103-4R7N4R65 | 4.70uH | 0.0300Ω | 4650mA | ||
FASDRH103-6R8N3R84 | 6.80uH | 0.0350Ω | 3840mA | ||
FASDRH103-8R2N3R54 | 8.20uH | 0.0500Ω | 3540mA | ||
FASDRH103-100M3R18 | 10.00uH | 0.0590Ω | 3180mA | ||
FASDRH103-101M1R02 | 100.00uH | 0.6830Ω | 1020mA | ||
FASDRH103-121M0R89 | 120.00uH | 0.7540Ω | 890mA | ||
FASDRH103-150M2R6 | 15.00uH | 0.0910Ω | 2600mA | ||
FASDRH103-151M0R84 | 150.00uH | 0.8710Ω | 840mA | ||
FASDRH103-220M2R16 | 22.00uH | 0.1430Ω | 2160mA | ||
FASDRH103-330M1R74 | 33.00uH | 0.2020Ω | 1740mA | ||
FASDRH103-470M1R43 | 47.00uH | 0.2990Ω | 1430mA | ||
FASDRH103-560M1R36 | 56.00uH | 0.3250Ω | 1360mA | ||
FASDRH103-680M1R22 | 68.00uH | 0.4290Ω | 1220mA | ||
FASDRH103-820M1R14 | 82.00uH | 0.4940Ω | 1140mA | ||
FASDRH104 | 1-1000uH | 0.0075-4.4200Ω | 400-10500mA | - | |
FASDRH104-1R0N10R5 | 1.00uH | 0.0075Ω | 10500mA | ||
FASDRH104-1R5N9R5 | 1.50uH | 0.0085Ω | 9500mA | ||
FASDRH104-1R8N9R0 | 1.80uH | 0.0095Ω | 9000mA | ||
FASDRH104-2R2N7R5 | 2.20uH | 0.0105Ω | 7500mA | ||
FASDRH104-2R5N7R5 | 2.50uH | 0.0105Ω | 7500mA | ||
FASDRH104-3R3N6R0 | 3.30uH | 0.0130Ω | 6000mA | ||
FASDRH104-3R8N6R0 | 3.80uH | 0.0150Ω | 6000mA | ||
FASDRH104-4R7N5R7 | 4.70uH | 0.0200Ω | 5700mA | ||
FASDRH104-5R2N5R5 | 5.20uH | 0.0230Ω | 5500mA | ||
FASDRH104-5R6N5R0 | 5.60uH | 0.0270Ω | 5000mA | ||
FASDRH104-6R8N5R0 | 6.80uH | 0.0270Ω | 5000mA | ||
FASDRH104-7R0N4R8 | 7.00H | 0.0270Ω | 4800mA | ||
FASDRH104-8R2N4R5 | 8.20uH | 0.0330Ω | 4500mA | ||
FASDRH104-100M4R4 | 10.00uH | 0.0350Ω | 4400mA | ||
FASDRH104-101M1R35 | 100.00uH | 0.3040Ω | 1350mA | ||
FASDRH104-102M0R4 | 1000.00uH | 4.4200Ω | 400mA | ||
FASDRH104-120M4R0 | 12.00uH | 0.0460Ω | 4000mA | ||
FASDRH104-121M1R18 | 120.00uH | 0.4200Ω | 1180mA | ||
FASDRH104-150M3R6 | 15.00uH | 0.0500Ω | 3600mA | ||
FASDRH104-151M1R15 | 150.00uH | 0.5060Ω | 1150mA | ||
FASDRH104-180M3R1 | 18.00uH | 0.0700Ω | 3100mA | ||
FASDRH104-181M1R0 | 180.00uH | 0.6800Ω | 1000mA | ||
FASDRH104-220M2R9 | 22.00uH | 0.0730Ω | 2900mA | ||
FASDRH104-221M0R92 | 220.00uH | 0.7560Ω | 920mA | ||
FASDRH104-270M2R6 | 27.00uH | 0.0890Ω | 2600mA | ||
FASDRH104-330M2R3 | 33.00uH | 0.0930Ω | 2300mA | ||
FASDRH104-331M0R7 | 330.00uH | 1.0900Ω | 700mA | ||
FASDRH104-390M2R2 | 39.00uH | 0.1250Ω | 2200mA | ||
FASDRH104-470M2R1 | 47.00uH | 0.1280Ω | 2100mA | ||
FASDRH104-471M0R6 | 470.00uH | 1.3500Ω | 600mA | ||
FASDRH104-560M1R65 | 56.00uH | 0.1880Ω | 1650mA | ||
FASDRH104-680M1R5 | 68.00uH | 0.2130Ω | 1500mA | ||
FASDRH104-681M0R45 | 680.00uH | 2.4000Ω | 450mA | ||
FASDRH104-820M1R4 | 82.00uH | 0.3000Ω | 1400mA | ||
FASDRH104-821M0R43 | 820.00H | 3.8000Ω | 430mA | ||
FASDRH105 | 1.5-1000uH | 0.0065-1.9890Ω | 480-9000mA | - | |
FASDRH105-1R5N9R0 | 1.50uH | 0.0065Ω | 9000mA | ||
FASDRH105-2R2N7R5 | 2.20uH | 0.0085Ω | 7500mA | ||
FASDRH105-3R3N7R8 | 3.30uH | 0.0104Ω | 7800mA | ||
FASDRH105-4R7N6R1 | 4.70uH | 0.0130Ω | 6100mA | ||
FASDRH105-6R8N5R4 | 6.80uH | 0.0180Ω | 5400mA | ||
FASDRH105-8R2N5R0 | 8.20uH | 0.0200Ω | 5000mA | ||
FASDRH105-100M4R5 | 10.00uH | 0.0260Ω | 4500mA | ||
FASDRH105-101M1R35 | 100.00uH | 0.2530Ω | 1350mA | ||
FASDRH105-102M0R48 | 1000.00uH | 1.9890Ω | 480mA | ||
FASDRH105-120M3R8 | 12.00uH | 0.0330Ω | 3800mA | ||
FASDRH105-121M1R28 | 120.00uH | 0.3030Ω | 1280mA | ||
FASDRH105-150M3R4 | 15.00uH | 0.0410Ω | 3400mA | ||
FASDRH105-151M1R12 | 150.00uH | 0.3700Ω | 1120mA | ||
FASDRH105-180M3R1 | 18.00uH | 0.0460Ω | 3100mA | ||
FASDRH105-181M1R04 | 180.00uH | 0.4190Ω | 1040mA | ||
FASDRH105-220M2R9 | 22.00uH | 0.0610Ω | 2900mA | ||
FASDRH105-221M0R94 | 220.00uH | 0.5000Ω | 940mA | ||
FASDRH105-270M2R6 | 27.00uH | 0.0690Ω | 2600mA | ||
FASDRH105-271M0R84 | 270.00uH | 0.6720Ω | 840mA | ||
FASDRH105-330M2R5 | 33.00uH | 0.0840Ω | 2500mA | ||
FASDRH105-331M0R75 | 330.00uH | 0.8120Ω | 750mA | ||
FASDRH105-390M2R3 | 39.00uH | 0.1060Ω | 2300mA | ||
FASDRH105-391M0R7 | 390.00uH | 0.9530Ω | 700mA | ||
FASDRH105-470M2R0 | 47.00uH | 0.1300Ω | 2000mA | ||
FASDRH105-471M0R6 | 470.00uH | 1.2890Ω | 600mA | ||
FASDRH105-560M1R9 | 56.00uH | 0.1490Ω | 1900mA | ||
FASDRH105-561M0R54 | 560.00uH | 1.4300Ω | 540mA | ||
FASDRH105-680M1R65 | 68.00uH | 0.2010Ω | 1650mA | ||
FASDRH105-681M0R52 | 680.00uH | 1.5990Ω | 520mA | ||
FASDRH105-820M1R5 | 82.00uH | 0.2270Ω | 1500mA | ||
FASDRH105-821M0R5 | 820.00uH | 1.7680Ω | 500mA | ||
FASDRH10145 | 3.30-1500.00uH | 0.0193-4.0800Ω | 220-4900mA | - | |
FASDRH10145-3R3N4R9 | 3.30uH | 0.0193Ω | 4900mA | ||
FASDRH10145-5R6N3R8 | 5.60uH | 0.0264Ω | 3800mA | ||
FASDRH10145-100M3R0 | 10.00uH | 0.0436Ω | 3000mA | ||
FASDRH10145-101M1R0 | 100.00uH | 0.2400Ω | 1000mA | ||
FASDRH10145-102M0R32 | 1000.00uH | 3.3600Ω | 320mA | ||
FASDRH10145-150M2R4 | 15.00uH | 0.0566Ω | 2400mA | ||
FASDRH10145-151M0R79 | 150.00uH | 0.4200Ω | 790mA | ||
FASDRH10145-152M0R22 | 1500.00uH | 4.0800Ω | 220mA | ||
FASDRH10145-220M2R1 | 22.00uH | 0.0709Ω | 2100mA | ||
FASDRH10145-221M0R65 | 220.00uH | 0.5640Ω | 650mA | ||
FASDRH10145-330M1R6 | 33.00uH | 0.0978Ω | 1600mA | ||
FASDRH10145-331M0R54 | 330.00uH | 0.8160Ω | 540mA | ||
FASDRH10145-470M1R4 | 47.00uH | 0.1200Ω | 1400mA | ||
FASDRH10145-471M0R47 | 470.00uH | 1.2360Ω | 470mA | ||
FASDRH10145-680M1R2 | 68.00uH | 0.1680Ω | 1200mA | ||
FASDRH10145-681M0R38 | 680.00uH | 1.9200Ω | 380mA | ||
FASDRH12555 | 6.00-1500uH | 0.0196-2.0760Ω | 290-3600mA | - | |
FASDRH12555-6R0N3R6 | 6.00uH | 0.0196Ω | 3600mA | ||
FASDRH12555-100M3R4 | 10.00uH | 0.0258Ω | 3400mA | ||
FASDRH12555-101M1R1 | 100.00uH | 0.1400Ω | 1100mA | ||
FASDRH12555-102M0R34 | 1000.00uH | 1.3440Ω | 340mA | ||
FASDRH12555-122M0R32 | 1200.00uH | 1.8500Ω | 320mA | ||
FASDRH12555-150M2R8 | 15.00uH | 0.0310Ω | 2800mA | ||
FASDRH12555-151M0R88 | 150.00uH | 0.2280Ω | 880mA | ||
FASDRH12555-152M0R29 | 1500.00uH | 2.0760Ω | 290mA | ||
FASDRH12555-220M2R3 | 22.00uH | 0.04050Ω | 2300mA | ||
FASDRH12555-221M0R72 | 220.00uH | 0.3240Ω | 720mA | ||
FASDRH12555-330M1R9 | 33.00uH | 0.0498Ω | 1900mA | ||
FASDRH12555-331M0R59 | 330.00uH | 0.4920Ω | 590mA | ||
FASDRH12555-470M1R6 | 47.00uH | 0.0741Ω | 1600mA | ||
FASDRH12555-471M0R49 | 470.00uH | 0.6240Ω | 490mA | ||
FASDRH12555-680M1R3 | 68.00uH | 0.0998Ω | 1300mA | ||
FASDRH12555-681M0R43 | 680.00uH | 0.9120Ω | 430mA | ||
FASDRH12565 | 2.00-1000uH | 0.0150-1.37500Ω | 300-10000mA | - | |
FASDRH12565-2R0N10R0 | 2.00uH | 0.0150Ω | 10000mA | ||
FASDRH12565-4R2N7R3 | 4.20uH | 0.0190Ω | 7300mA | ||
FASDRH12565-7R0N5R7 | 7.00uH | 0.0212Ω | 5700mA | ||
FASDRH12565-100M5R0 | 10.00uH | 0.0242Ω | 5000mA | ||
FASDRH12565-101M1R6 | 100.00uH | 0.1470Ω | 1600mA | ||
FASDRH12565-102M0R3 | 1000.00uH | 1.3750Ω | 300mA | ||
FASDRH12565-150M4R2 | 15.00uH | 0.0284Ω | 4200mA | ||
FASDRH12565-220M3R5 | 22.00uH | 0.0379Ω | 3500mA | ||
FASDRH12565-221M1R0 | 220.00uH | 0.3270Ω | 1000mA | ||
FASDRH12565-330M2R8 | 33.00uH | 0.0588Ω | 2800mA | ||
FASDRH12565-470M2R4 | 47.00uH | 0.0693Ω | 2400mA | ||
FASDRH12565-680M2R0 | 68.00uH | 0.0944Ω | 2000mA | ||
FASDRH12575 | 1.20-470uH | 0.00828-0.66Ω | 850-13000mA | - | |
FASDRH12575-1R2N13R0 | 1.20uH | 0.00828Ω | 13000mA | ||
FASDRH12575-2R7N10R0 | 2.70uH | 0.0113Ω | 10000mA | ||
FASDRH12575-3R3N9R5 | 3.30uH | 0.0123Ω | 9500mA | ||
FASDRH12575-3R9N9R0 | 3.90uH | 0.0135Ω | 9000mA | ||
FASDRH12575-5R6N7R8 | 5.60uH | 0.0150Ω | 7800mA | ||
FASDRH12575-6R8N7R2 | 6.80uH | 0.0170Ω | 7200mA | ||
FASDRH12575-100M5R5 |
